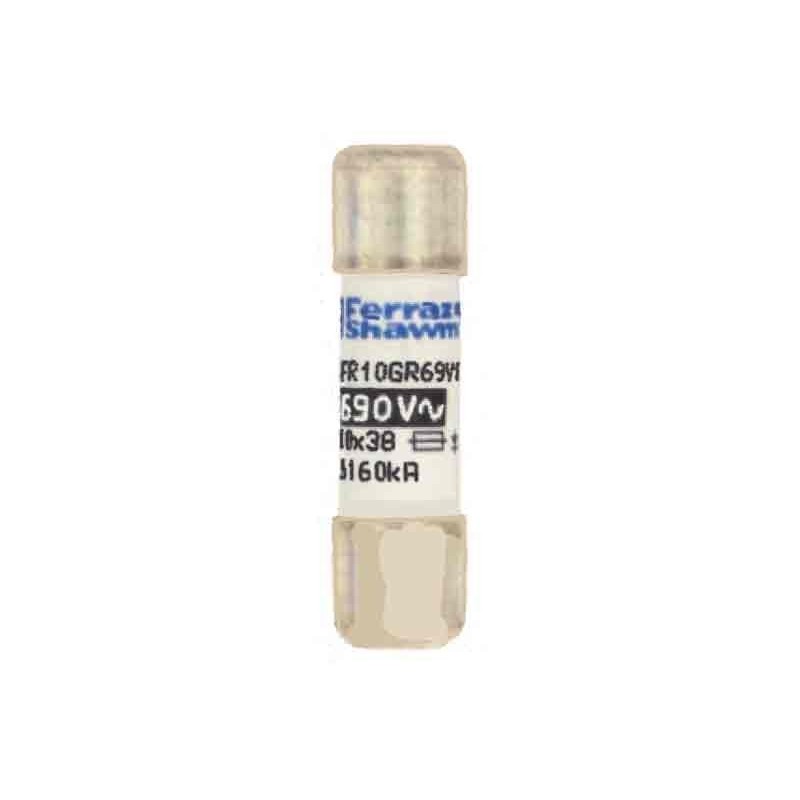

C1014578 Mersen 12-1/2A 700Vac Fuse

Reference FR10GR69V12.5

Brand Mersen

Primarily Used For Semiconductor Protection
13/32"OD x 1-1/2"L (10mm x 38mm) Rated 700Vac 500Vdc
Inturrupting Rating 160Ka@690Vac
I²T Clearing Rating 90A²Seconds @690Vac
I²T Clearing Rating 60A²Seconds @480Vac
I²T Clearing Rating 36A²Seconds @240Vac
I²T Clearing Rating 29A²Seconds @120Vac

$18.95

Quantity

Out-of-Stock

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

These Semiconductor Protecting Fuses Are Extremely Fast Acting With Current Limiting And Excellent Cycling Ability. Some Recommended Applications are Solid State Relays, SCR Controllers, Motor Drives, Small Inverters And Equipment Requiring The Highest Degree Of Protection. Similar To Bussman FWC-12A10F

Can Be Used With Ferraz Shawmut Ultrasafe Fuse Holders.

Product Details

Reference FR10GR69V12.5

Specific References

UPC: 782001942742

Attachments

Download

Protistor Semiconductor Catalog

Download (2.61KB)
