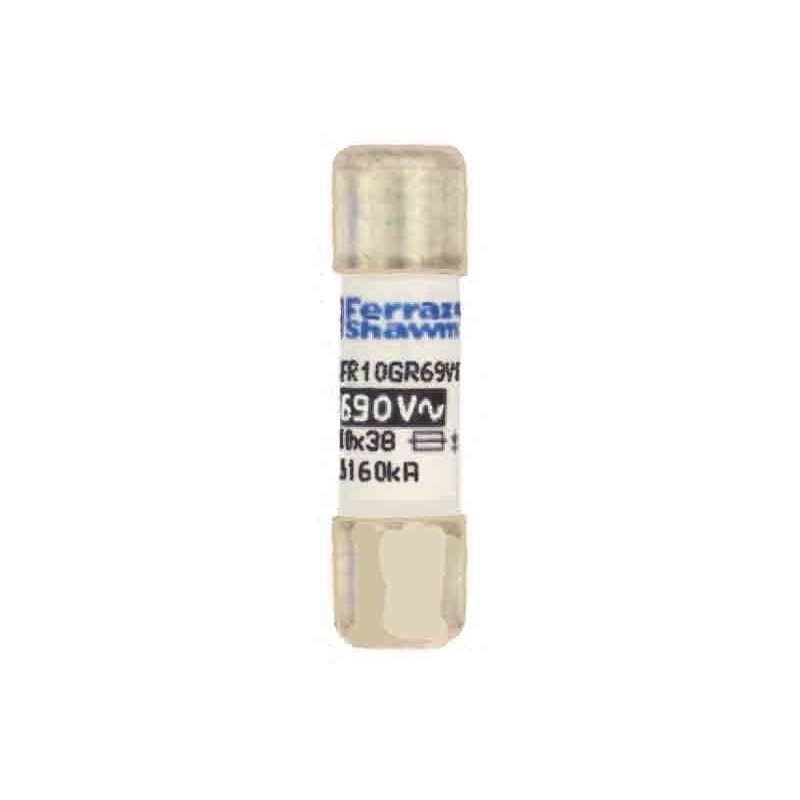

G1014582 Mersen 30A 700Vac Fuse

Reference FR10GR69V30

Brand Mersen

Primarily Used For Semiconductor Protection

13/32"OD x 1-1/2"L (10mm x 38mm) Rated 700Vac 500Vdc
Inturrupting Rating 160Ka@690Vac
I²T Clearing Rating 675A²Seconds @690Vac
I²T Clearing Rating 452A²Seconds @480Vac
I²T Clearing Rating 270A²Seconds @240Vac
I²T Clearing Rating 216A²Seconds @120Vac

$20.25

Quantity

In stock: 5 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

These Semiconductor Protecting Fuses Are Extremely Fast Acting With Current Limiting And Excellent Cycling Ability. Some Recommended Applications are Solid State Relays, SCR Controllers, Motor Drives, Small Inverters And Equipment Requiring The Highest Degree Of Protection. Similar To Bussman FWC-30A10F

Can Be Used With Ferraz Shawmut Ultrasafe Fuse Holders.

Product Details

Reference FR10GR69V30

In stock 5 Items

Specific References

UPC: 782001942746

Attachments

Download

Protistor Semiconductor Catalog

Download (2.61KB)

4 other products in the same category:

ATM1/10 SHAWMUT FUSE 1/10-A 600Vac-dc Fast Acting

Reference: ATM3/4

Brand: Mersen

ATM3/4 SHAWMUT FUSE 3/4-A 600Vac-dc Fast Acting

Used For Supplemental Protection Of Small Motors & Transformers 13/32"OD x 1-1/2"L (10mm x 38mm) 100K Amp Interupting Rating Available in Amerages Up To 30A UL Listed & CSA Certified Can Be Used With UltraSafe Fuse Holders UPC 78200190079

$23.80

In stock

Reference: FR10GR69V6

Brand: Mersen

Y1014574 Mersen 6A 700Vac Fuse

Primarily Used For Semiconductor Protection 13/32"OD x 1-1/2"L (10mm x 38mm) Rated 700Vac 500Vdc Inturrupting Rating 160Ka@690Vac I²T Clearing Rating 40A²Seconds @690Vac I²T Clearing Rating 27A²Seconds @480Vac I²T Clearing Rating 16A²Seconds @240Vac I²T Clearing Rating 13A²Seconds @120Vac

$18.95

In stock

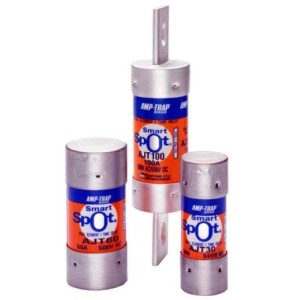

AJT1 Shawmut 1A 600Vac 500Vdc Time-Delay Fuse
