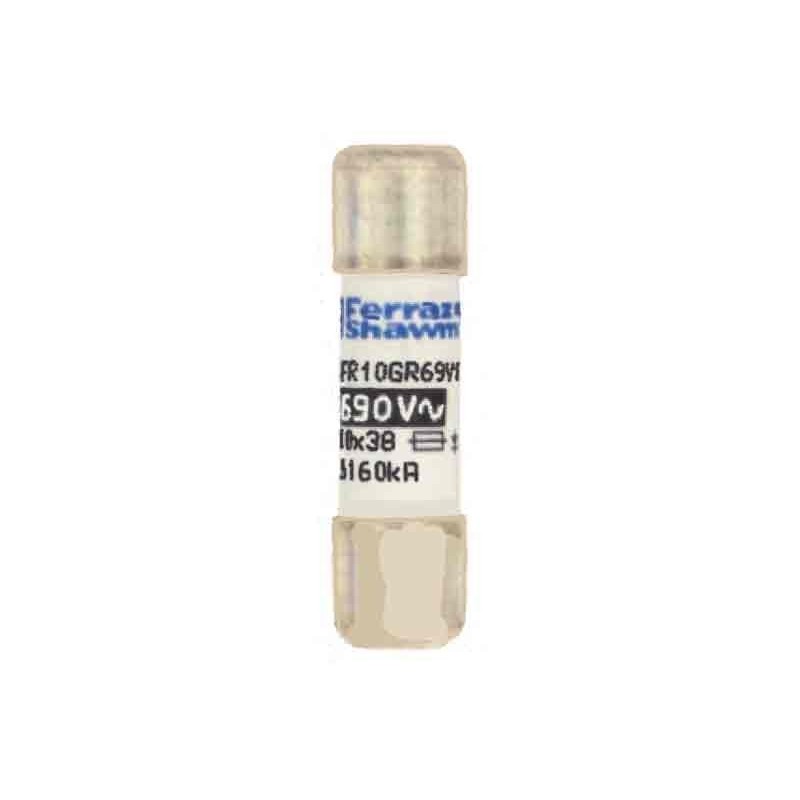

E1014580 Mersen 20A 700Vac Fuse

Reference FR10GR69V20

Brand Mersen

Primarily Used For Semiconductor Protection

13/32"OD x 1-1/2"L (10mm x 38mm) Rated 700Vac 500Vdc
Inturrupting Rating 160Ka@690Vac
I²T Clearing Rating 245A²Seconds @690Vac
I²T Clearing Rating 164A²Seconds @480Vac
I²T Clearing Rating 98A²Seconds @240Vac
I²T Clearing Rating 79A²Seconds @120Vac

$18.95

Quantity

In stock: 20 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

These Semiconductor Protecting Fuses Are Extremely Fast Acting With Current Limiting And Excellent Cycling Ability. Some Recommended Applications are Solid State Relays, SCR Controllers, Motor Drives, Small Inverters And Equipment Requiring The Highest Degree Of Protection. Similar To Bussman FWC-20A10F

Can Be Used With Ferraz Shawmut Ultrasafe Fuse Holders.

Product Details

Reference FR10GR69V20

In stock 20 Items

Specific References

UPC: 782001942744

Attachments

Download

Protistor Semiconductor Catalog

Download (2.61KB)
