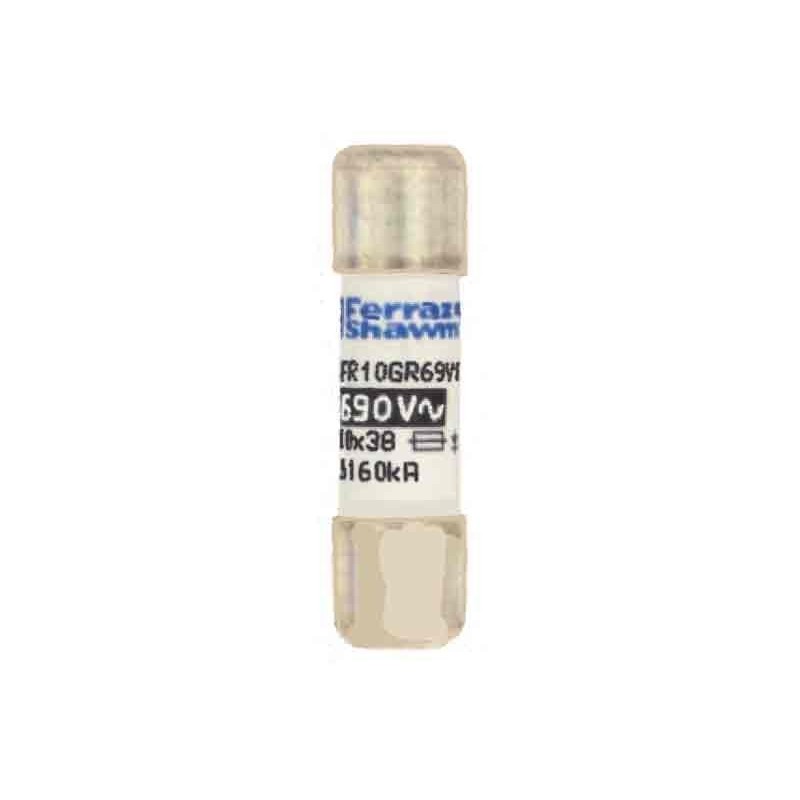

D1014579 Mersen 16A 700Vac Fuse

Reference FR10GR69V16

Brand Mersen

Primarily Used For Semiconductor Protection
13/32"OD x 1-1/2"L (10mm x 38mm) Rated 700Vac 500Vdc
Inturrupting Rating 160Ka@690Vac
I²T Clearing Rating 140A²Seconds @690Vac
I²T Clearing Rating 94A²Seconds @480Vac
I²T Clearing Rating 56A²Seconds @240Vac
I²T Clearing Rating 45A²Seconds @120Vac

$18.95

Quantity

In stock: 24 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

These Semiconductor Protecting Fuses Are Extremely Fast Acting With Current Limiting And Excellent Cycling Ability. Some Recommended Applications are Solid State Relays, SCR Controllers, Motor Drives, Small Inverters And Equipment Requiring The Highest Degree Of Protection. Similar To Bussman FWC-16A10F

Can Be Used With Ferraz Shawmut Ultrasafe Fuse Holders.

Product Details

Reference FR10GR69V16

In stock 24 Items

Specific References

UPC: 782001942743

Attachments

Download

Protistor Semiconductor Catalog

Download (2.61KB)

4 other products in the same category:

AJT1 Shawmut 1A 600Vac 500Vdc Time-Delay Fuse

Reference: AJT1-1/2

Brand: Mersen

AJT1-1/2 Shawmut 1-1/2-A 600Vac 500Vdc Time-Delay Fuse

Amp-Trap Class J Time Delay Fuse SmartSpot Indicator Provides Visual For Blown Fuse Most Current-Limiting UL Class Fuse IEC Type 2 No Damage Protection For All Types Of Loads Interrupt Amp Rating 200K@600Vac 100K@500Vdc High Grade Silica Filler Ensures Fast Arc Quenching Can Be Used With IP20 Rated Ultrasafe Fuse Holders UPC 78200196305

$24.35

In stock

Reference: DCT5-2

Brand: Mersen

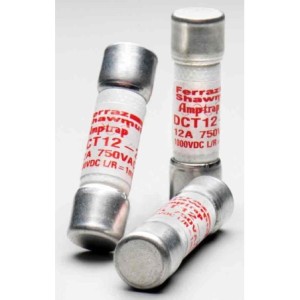

DCT5-2 Shawmut Fuse 5A 750Vac 1000Vdc
