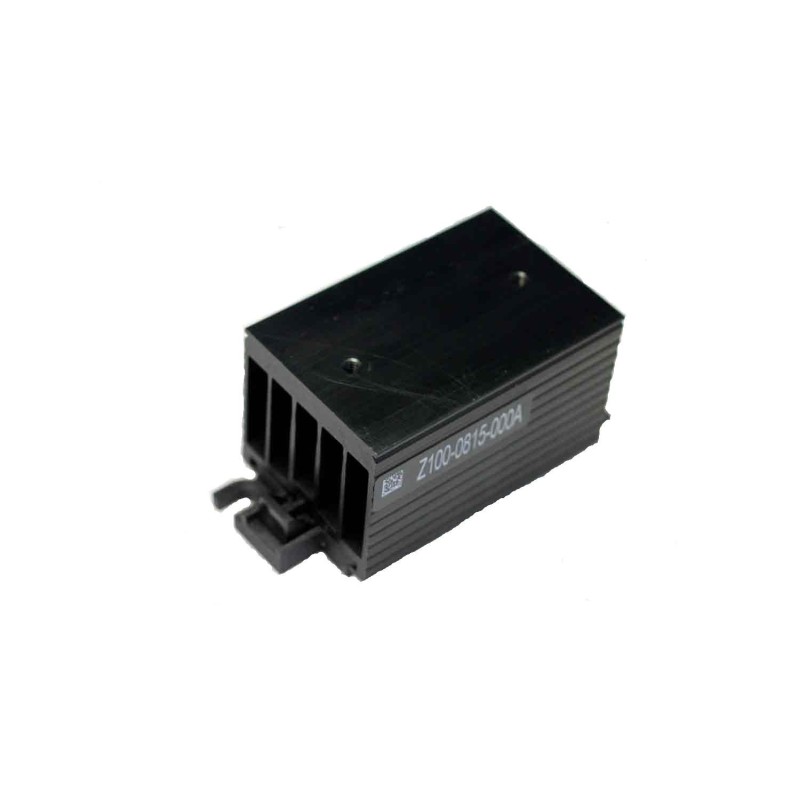

Z100-0815-000A 18A Heat Sink
  • Z100-0815-000A 18A Heat Sink
  • Z100-0815-000A 18A Heat Sink
  • Heat Sink Z100-0815-000A

Z100-0815-000A 18A Heat Sink

Z100-0815-000A
  • Aluminum Body With A Black Anodized Finish
  • Rated At 2.2°C/W
  • Designed For Use With Hockey Puck Style Solid State Relays
  • Width 1.8"(46mm) x 3.7"(94mm) Long x 1.9"(48mm) High
  • Din Rail Mounted OR Base Mounted
  • Relay Mounting Holes Are 8/32 Threads
  • Removes Heat Away From Solid State Relays
$24.00
Quantity
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Following Watlow SSRs Are Appropriate For This Heat Sink:

  • SSR-240-10A-DC1
  • SSR-240-10A-AC1
  • SSR-240-25A-DC1
  • SSR-240-25A-AC1
  • SSR-480-25A-DC1
  • SSR-480-25A-AC1
Product Details
Z100-0815-000A
0
4 Items
