ATQR4 Shawmut 4A 600Vac Time-Delay Fuse

ATQR4
Mersen
  • Class CC Rated 300Vdc and 600Vac
  • Rated Inturrupting Capacity 200Ka@600Vac 100Ka@300Vdc
  • Rejection Design Prevents Substitution By Lesser Rated Fuses
  • Can Be Used With Ultrasafe Type UCC Fuse Holders
  • Ideally Suited For High Inrush Currents of Control Transformers, and Solenoids
  • Ultrasafe Is A Trademark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould Fuses
  • UPC 78200190656
$22.58
Quantity
100 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

THE FOLLOWING ULTRASAFE MERSEN FUSE HOLDERS CAN BE USED:

  • USCC1  One Pole
  • USCC1i One Pole With Blown Fuse Indicator
  • USCC2  Two Pole
  • USCC2i Two Pole With Blown Fuse Indicator
  • USCC3  Three Pole
  • USCC3i Three Pole With Blown Fuse Indicator
  • USCC4  Four Pole
  • USCC4i Four Pole With Blown Fuse Indicator
Product Details
ATQR4
0
100 Items
4 other products in the same category:
ATQ1/10 Shawmut Fuse 1/10-A 500Vac Time-Delay

Reference: ATQ3-2/10

Brand: Mersen

ATQ3-2/10 Shawmut Fuse3- 2/10-A 500Vac Time-Delay

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200190607
$23.32
More ATQ3-2/10 Shawmut Fuse3- 2/10-A 500Vac Time-Delay
In stock
TRM1/10 Shawmut Fuse 1/10-A 250Vac Time-Delay

Reference: TRM20

Brand: Mersen

TRM20 Shawmut Fuse 20A 250Vac Time-Delay

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200174663
$8.05
More TRM20 Shawmut Fuse 20A 250Vac Time-Delay
In stock
Out-of-Stock C1014578 Mersen 12-1/2A 700Vac Fuse

Reference: FR10GR69V32

Brand: Mersen

H1014583 Mersen 32A 700Vac Fuse

Primarily Used For Semiconductor Protection 13/32"OD x 1-1/2"L  (10mm x 38mm) Rated 700Vac 500Vdc Inturrupting Rating 160Ka@690Vac  I²T Clearing Rating 945A²Seconds @690Vac I²T Clearing Rating 634A²Seconds @480Vac I²T Clearing Rating 378A²Seconds @240Vac I²T Clearing Rating 302A²Seconds @120Vac
$32.86
More H1014583 Mersen 32A 700Vac Fuse
Out-of-Stock

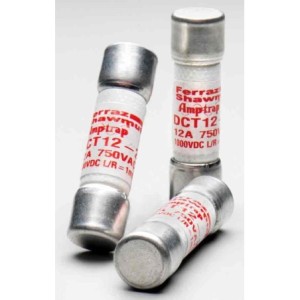

DCT5-2 Shawmut Fuse 5A 750Vac 1000Vdc
