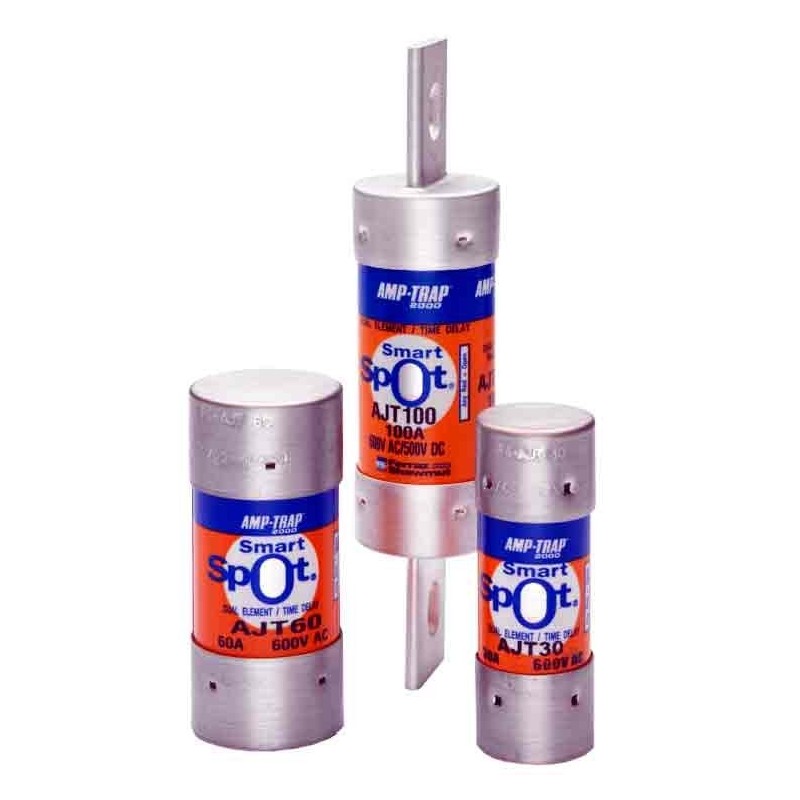

AJT1 Shawmut 1A 600Vac 500Vdc Time-Delay Fuse
  • AJT1 Shawmut 1A 600Vac 500Vdc Time-Delay Fuse
  • AJT1 Shawmut 1A 600Vac 500Vdc Time-Delay Fuse

AJT3-2/10 Shawmut 3-2/10-A 600Vac 500Vdc Time-Delay Fuse

AJT3-2/10
Mersen
  • Amp-Trap Class J Time Delay Fuse
  • SmartSpot Indicator Provides Visual For Blown Fuse
  • Most Current-Limiting UL Class Fuse
  • IEC Type 2 No Damage Protection For All Types Of Loads
  • Interrupt Amp Rating 200K@600Vac 100K@500Vdc
  • High Grade Silica Filler Ensures Fast Arc Quenching
  • Can Be Used With IP20 Rated Ultrasafe Fuse Holders
  • UPC 78200196284
$33.91
Quantity
12 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

THE FOLLOWING MERSEN ULTRASAFE FUSE HOLDERS CAN BE USED:

  • US3J1  Single Pole
  • US3J1i Single Pole With Blown Fuse Indicator
  • US3J2  Two Pole
  • US3J2i Two Pole With Blown Fuse Indicator
  • US3J3  Three Pole
  • US3J3i Three Pole With Blown Fuse Indicator
Product Details
AJT3-2/10
0
12 Items
4 other products in the same category:
ATM1/10 SHAWMUT FUSE 1/10-A 600Vac-dc Fast Acting

Reference: ATM1-1/2

Brand: Mersen

ATM1-1/2 SHAWMUT FUSE 1-1/2-A 600Vac-dc Fast Acting

Used For Supplemental Protection Of Small Motors & Transformers 13/32"OD x 1-1/2"L (10mm x 38mm) 100K Amp Interupting Rating Available in Amerages Up To 30A UL Listed & CSA Certified Can Be Used With UltraSafe Fuse Holders UPC 78200190080
$21.96
More ATM1-1/2 SHAWMUT FUSE 1-1/2-A 600Vac-dc Fast Acting
In stock
Out-of-Stock C1014578 Mersen 12-1/2A 700Vac Fuse

Reference: FR10GR69V12.5

Brand: Mersen

C1014578 Mersen 12-1/2A 700Vac Fuse

Primarily Used For Semiconductor Protection 13/32"OD x 1-1/2"L  (10mm x 38mm) Rated 700Vac 500Vdc Inturrupting Rating 160Ka@690Vac I²T Clearing Rating 90A²Seconds @690Vac I²T Clearing Rating 60A²Seconds @480Vac I²T Clearing Rating 36A²Seconds @240Vac I²T Clearing Rating 29A²Seconds @120Vac
$18.95
More C1014578 Mersen 12-1/2A 700Vac Fuse
Out-of-Stock
ATM1/10 SHAWMUT FUSE 1/10-A 600Vac-dc Fast Acting

Reference: ATM30/40

Brand: Mersen

ATM30/40 SHAWMUT FUSE 30/40A 600Vac-dc Fast Acting

Rated at 30A Continuous And 40A Extended Rating For High Inrush Currents Primarily Used For Protection Of Capacitors 13/32"OD x 1-1/2"L (10mm x 38mm) 100K Amp Interupting Rating Available in Amerages Up To 30A UL Listed & CSA Certified Can Be Used With UltraSafe Fuse Holders UPC 78200190208
$23.36
More ATM30/40 SHAWMUT FUSE 30/40A 600Vac-dc Fast Acting
In stock
TRM1/10 Shawmut Fuse 1/10-A 250Vac Time-Delay

Reference: TRM1

Brand: Mersen

TRM1 Shawmut Fuse 1A 250Vac Time-Delay

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200174317
