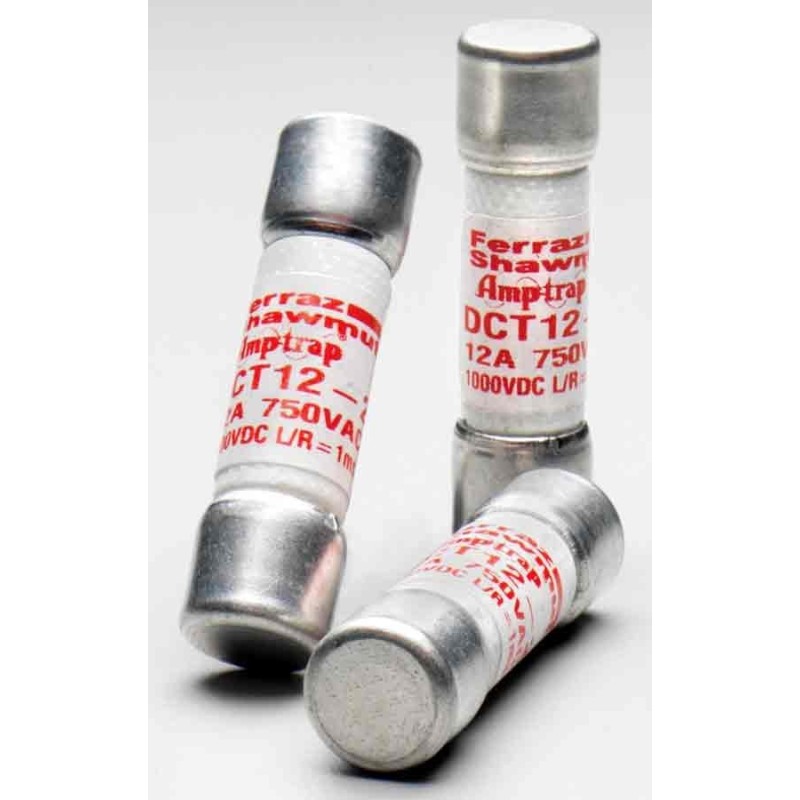

DCT12-2 Shawmut Fuse 12A 750Vac 1000Vdc

Class J Fast Acting And Current Limiting For Low Peak Let-Thru Current Rated Inturrpting Capacity 200Ka@600Vac 100Ka@300Vdc Unique Physical Dimensions Provides Protection From Substitution Protection For Capacitors, Load Centers, Circuit Breakers, And Feeder Circuits UPC 78200196037

Class CC IEC Type 2 No Damage Protection Fuse Rejection Design Prevents Substitution By Lesser Rated Fuses  Rated Inturrupting Capacity 200Ka@600Vac 100Ka@600Vdc Fast-Acting And Very Current-Limiting Can Be Used With Ultrasafe Type UCC Fuse Holders Ultrasafe Is A Trademark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould Fuses UPC 78200190483

Primarily Used For Semiconductor Protection Excellent Protection For Inverters & Electronic Controls Extremely Fast Acting With Excellent Cycling Ability 13/32"OD x 1-1/2"L  (10mm x 38mm) Interupting Ampere Rating 200k-VAC And 100K-VDC Available Up To 40A Can Be Used With UltraSafe Fuse Holders UPC 78200114247

Specifically Designed For Protection of Photovoltaic Systems Protects Battery Charge Controllers, Inverters, In-Line PV Cells 10K Amp Inturrupt Rating At 1000V-dc Low Fault Current Interrupting Capability Temperature Cycle Withstand Capability Can Be Used With Ultrasafe Fuse Holders UPC 78200142993
