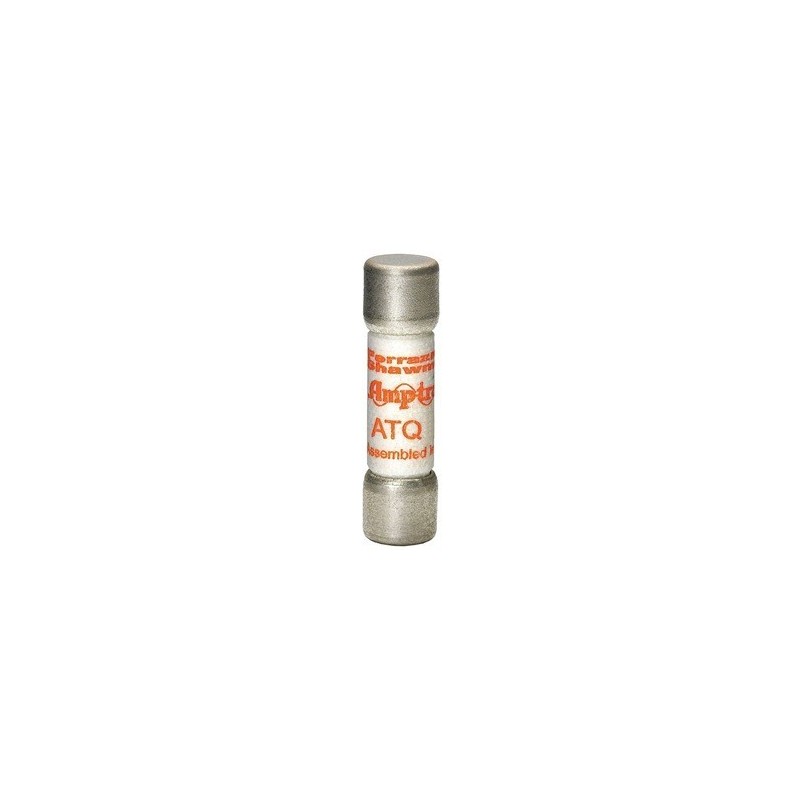

ATQ5-6/10 Shawmut Fuse 5-6/10-A 500Vac Time-Delay

Designed For Solid State Motor Starters (Soft Starters) Low I2T For Protections Of Diodes, SCR's, GTO's, And Solid State Relays Excellent Cycling Ability For Frequent On / Off Devices Interrupt Amp Rating 200K@600Vac 100K@500Vdc Can Be Used In Combination To Provide Branch Circuit Protection Per National Electric Code And Semiconductor Devices At The...

Class CC IEC Type 2 No Damage Protection Fuse Rejection Design Prevents Substitution By Lesser Rated Fuses  Rated Inturrupting Capacity 200Ka@600Vac 100Ka@600Vdc Fast-Acting And Very Current-Limiting Can Be Used With Ultrasafe Type UCC Fuse Holders Ultrasafe Is A Trademark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould Fuses UPC 78200190384

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200190245

Amp-Trap Class J Time Delay Fuse SmartSpot Indicator Provides Visual For Blown Fuse Most Current-Limiting UL Class Fuse IEC Type 2 No Damage Protection For All Types Of Loads Interrupt Amp Rating 200K@600Vac 100K@500Vdc High Grade Silica Filler Ensures Fast Arc Quenching UPC 78200196264
