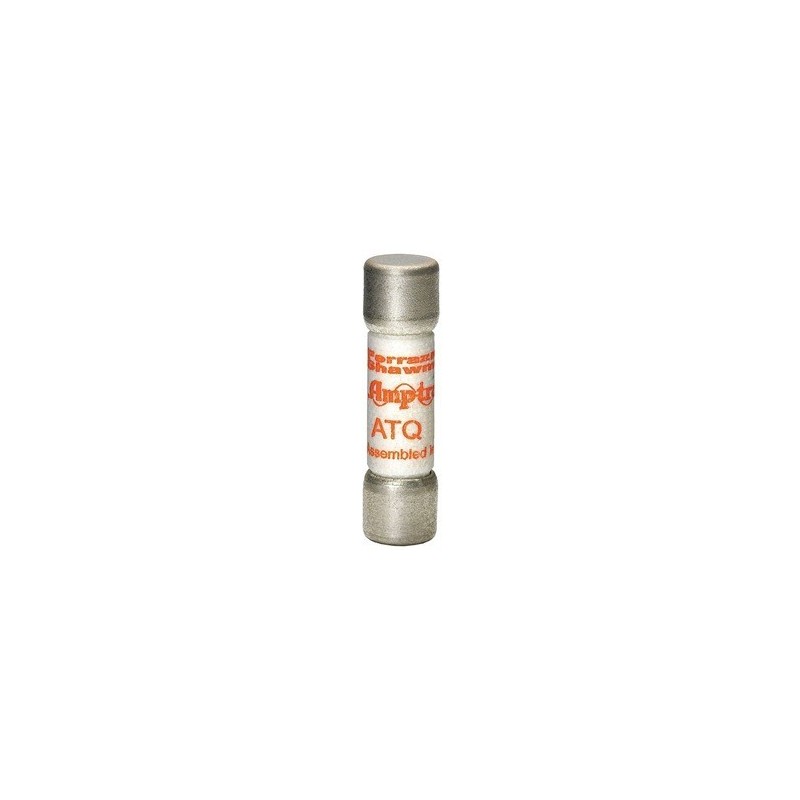

ATQ2 Shawmut Fuse 2A 500Vac Time-Delay

Designed For Protection Of Photovoltaic Cells And Multimeter Instruments 100K Amp Inturrpting Rating At 750Vac And 50K Amp At 1000Vdc 13/32"od 1-1/2"L (10mm X 38mm) Available Up To 30A Can Be Used With Ultrasafe Fuse Holders UPC 78200135242

Class CC Rated 300Vdc and 600Vac Rated Inturrupting Capacity 200Ka@600Vac 100Ka@300Vdc Rejection Design Prevents Substitution By Lesser Rated Fuses Can Be Used With Ultrasafe Type UCC Fuse Holders Ideally Suited For High Inrush Currents of Control Transformers, and Solenoids Ultrasafe Is A Trademark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould Fuses...

Primarily Used For Control Circuits, Control Transformers, And Small Motors 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interrupting Rating Fast Acting On Short Circuits Moderate Time-Delay On Inrush Currents Also Available Up To 15Amps Can Be Used With UltraSafe Fuse Holders UPC 78200190127

Primarily Used For Semiconductor Protection 13/32"OD x 1-1/2"L  (10mm x 38mm) Rated 700Vac 500Vdc Inturrupting Rating 160Ka@690Vac  I²T Clearing Rating 675A²Seconds @690Vac I²T Clearing Rating 452A²Seconds @480Vac I²T Clearing Rating 270A²Seconds @240Vac I²T Clearing Rating 216A²Seconds @120Vac
