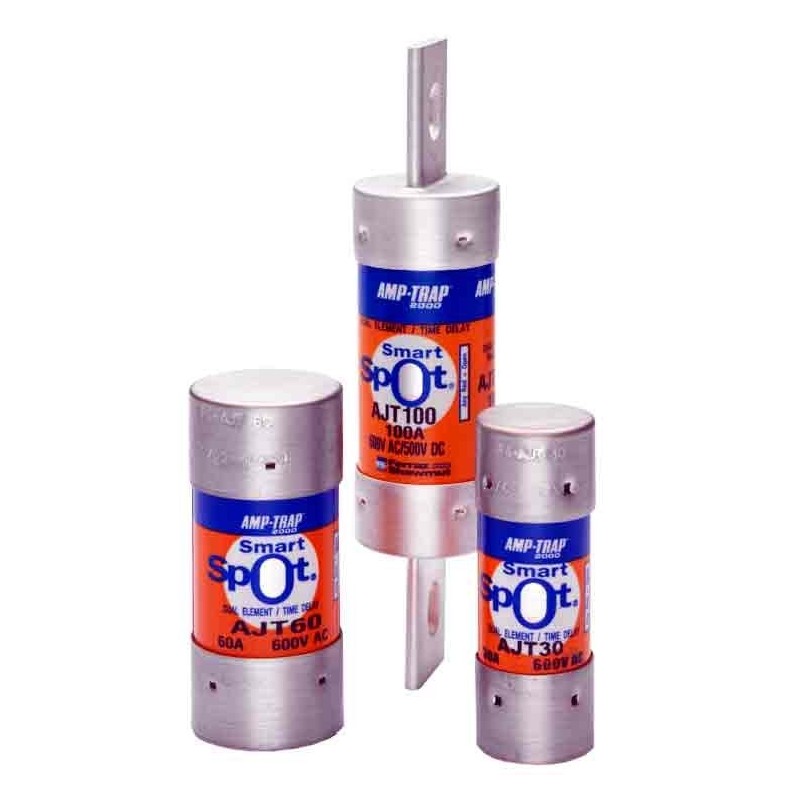

AJT1-1/2 Shawmut 1-1/2-A 600Vac 500Vdc Time-Delay Fuse

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200190267

Primarily Used For Semiconductor Protection 13/32"OD x 1-1/2"L  (10mm x 38mm) 600V ac/dc Rated Inturrupting Rating 200Ka@600Vac  100Ka@600Vdc I²T Clearing Rating 100k@600Vac= 150A²Seconds I²T Clearing Rating 100K@600Vdc = 90A²Seconds Same as Bussman FWC-12A10F

Rated at 30A Continuous And 35A Extended Rating For High Inrush Currents Primarily Used For Protection Of Capacitors 13/32"OD x 1-1/2"L (10mm x 38mm) 100K Amp Interupting Rating Available in Amerages Up To 30A UL Listed & CSA Certified Can Be Used With UltraSafe Fuse Holders UPC 78200190059

Class CC  IEC Type 2 No Damage Protection Fuse Rated Inturrupting Capacity 200Ka@600Vac 100Ka@300Vdc Excellent Cycling Ability Recommended for Small Motors And Resistive Load Contactors  Rejection Design Prevents Replacement Errors Can Be Used With Ultrasafe Type UCC Fuse Holders Ultrasafe Is A Trademark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould...
