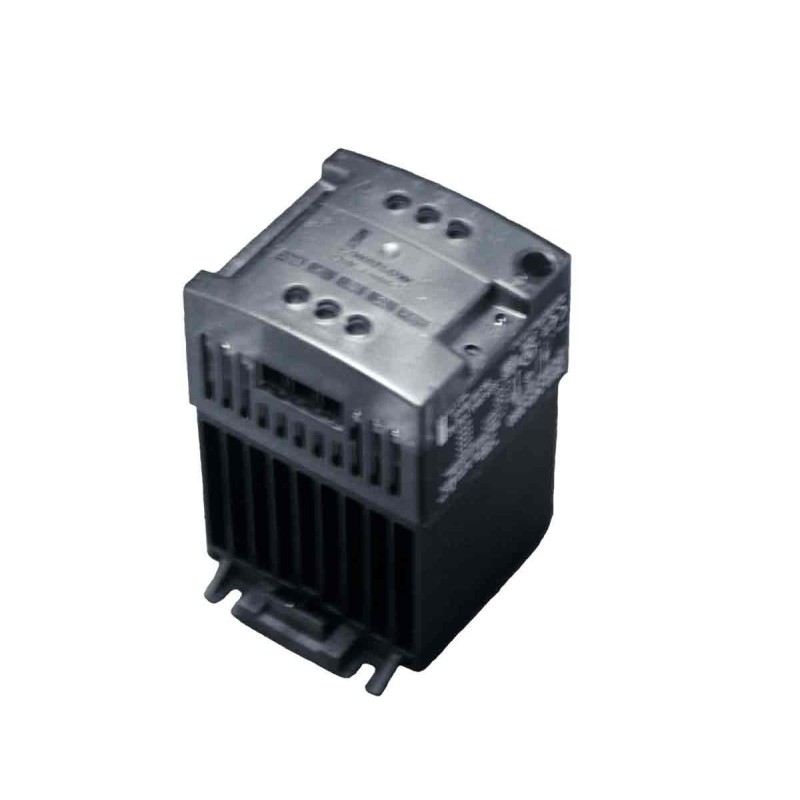

DB30-60F0-0000 Watlow Din-A-Mite B

DB30-60F0-0000
  • Line Voltage 277~600Vac 3-Phase 3-Controlled Legs
  • 4~20mA Proportional Control
  • Din Rail Mount or Flat Panel Mounting
  • Back to Back SCR Design
  • Zero Cross Switching Up-To 23A@77°F (see table below)
  • Available with Shorted SCR Alarm Watlow DB30-60F0-S000
$459.00
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Din-A-Mite B Current De-Ratings Shown Are Based On Natural Convection

   176°F....10-Amp    158°F....12-Amp    140°F....14-Amp    122°F....16-Amp    104°F....18-Amp    86°F......21-Amp

Din-A-Mite B  Operator Interface

  • Control input and indication light
  • Alarm output and indication light



Din-A-Mite B  Operating Environment

  • 0 to 90% non-condensing relative humidity
  • Storage temperature: -40°F to 185°F(-40°c to 85°c)
  • Operating temperature: -29°F to 176°F(-34°c to 80°c)
  • Insulation tested to 3,000 meters



Din-A-Mite B  Terminals

  • Control input terminals: compression 24 to 16 AWG max torque 4.4 in/lb
  • Line & Load terminals: compression 14 to 4 AWG max torque 24 in/lb



Din-A-Mite B  Mounting & Dimensions

  • DIN-Rail 35mm X 7.5mm DIN EN 50022
  • Back-Panel four mounting holes #6 to #8 fastener size
  • 3.7"H x 3.3"W x 4.9"D 1.5/Lb.s



Din-A-Mite B  Agency Approvals

  • CE with proper filter: 204/108/EC electromagnetic compatibility directive EN 61326-1: industrial immunity Class A emissions not suitable for Class B environments, 2006/95/EC low voltage directive EN50178 safety requirements installation category III, pollution degree 2.
  • UL-508 listed
  • C-UL file E73741
Product Details
DB30-60F0-0000
0
2 Items
4 other products in the same category:
DB10-24F0-0000 DB10-24F0-0000

Reference: DB10-02F0-0000

Brand: Watlow Electric Mfg.

DB10-02F0-0000 Watlow Din-A-Mite B

Line Voltage 24~48Vac 1-Phase 4~20mA Proportional Control  Din Rail Mount or Flat Panel Mounting Back to Back SCR Design Zero Cross Switching Up-To 40A@77°F thru 104°F (see table below) Available with Shorted SCR alarm Watlow DB10-02F0-S000
$302.00
More DB10-02F0-0000 Watlow Din-A-Mite B
Last items in stock
DC20-24K1-0000 Watlow Din-A-Mite C DC20-24K1-0000 Watlow Din-A-Mite C

Reference: DC20-24K3-0000

Brand: Watlow Electric Mfg.

DC20-24K3-0000 Watlow Din-A-Mite C

Line Voltage 100~240Vac 3-Phase, 2-Leg control Control Voltage 200~240Vac Back to Back SCR Design Zero Cross Switching Up-To 45A@104°F (see table below) 200Ka Short Circuit Current Rating with proper fusing Available with Shorted SCR Alarm Watlow DC20-24K3-S000
$551.00
More DC20-24K3-0000 Watlow Din-A-Mite C
Last items in stock

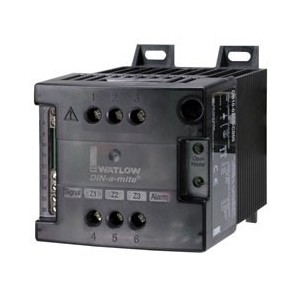

DB10-60K2-0000 DB10-60K2-0000
