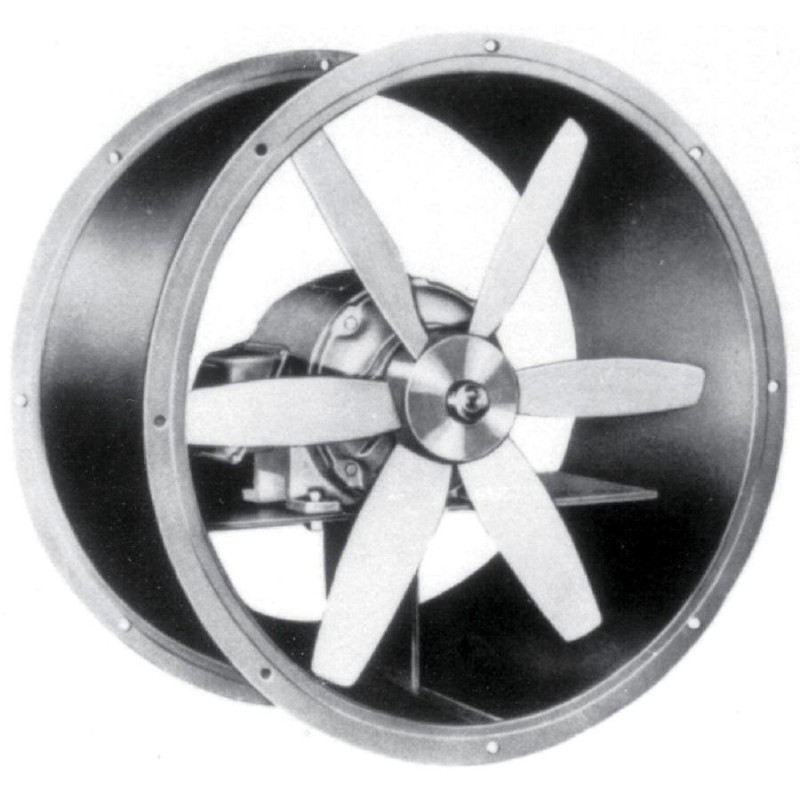

24" Propeller Axial Tube Fan 3/4-HP 3PH

Reference PLDA24HC-3

Brand Airmaster Fan Co.

Airmaster Fan Model PLDA24HC-3
Direct Drive Tube Mount Axial Fan
24" Spark Resistant Cast Aluminum Propeller
3/4-HP 230/460v 3-PH 1140-RPM Motor
6900-CFM @0.0" S.P., 6450-CFM @1/8" S.P.,
6265-CFM @1/4" S.P., 5600-CFM @3/8" S.P., 3300-CFM @1/2" S.P.
EDP 32052 UPC 783429320521
Also Available In Explosion Proof

$3,762.00

Quantity

Last items in stock

In stock: 1 Item

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

The Following Accessories Can Be Ordered:

EDP 32152 Matching Flange
EDP 32153 Access Door
EDP 32154 Guard
EDP 32155 Expoxy Coating
EDP 32156 Continueous Weld Of Flange To Drum
Made In The USA

Product Details

Reference PLDA24HC-3

In stock 1 Item

Specific References

UPC: 783429320521

Attachments

Download

Direct Drive Tube Fan Catalog

Download (2.61KB)
