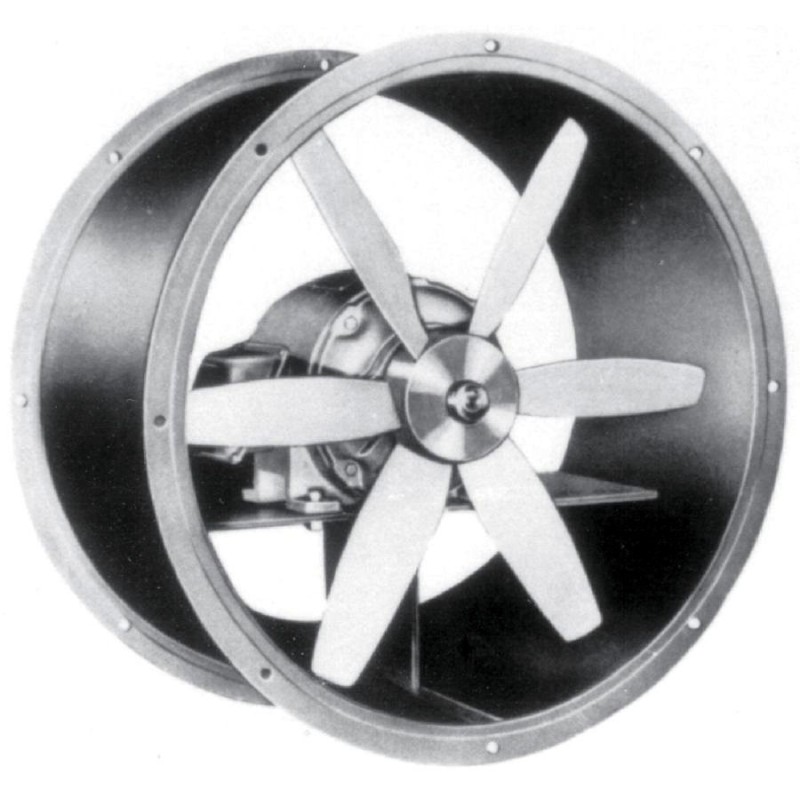

Axial Tube Mounted Fan
  • Axial Tube Mounted Fan
  • 12" Tube Axial Fans 1/2 HP

12" Propeller Axial Tube Fan 3/4-HP 3PH

PLDA12HZ-3PH
  • Airmaster Fan Model PLDA12HZ-3PH
  • Direct Drive Tube Mount Axial Fan
  • 12" Spark Resistant Cast Aluminum Propeller
  • 3/4-HP 230/460v 3-PH 3450-RPM Motor
  • 2044-CFM @0.0" S.P., 1960-CFM @1/8" S.P., 1920-CFM @1/4" S.P.
  • 1820-CFM @3/8" S.P., 1650-CFM @1/2" S.P., 1500-CFM @3/4" S.P.
  • EDP 32009  UPC 783429320095
  • Also Available In Explosion Proof
$2,260.00
Quantity
Last items in stock
1 Item

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The Following Accessories Can Be Ordered:

  • EDP 32141 Matching Flange
  • EDP 32142 Access Door
  • EDP 32143 Guard
  • EDP 32144 Expoxy Coating
  • EDP 32145 Continueous Weld Of Flange To Drum
  • Made In The USA
Product Details
PLDA12HZ-3PH
1 Item

Specific References

UPC
783429320095
