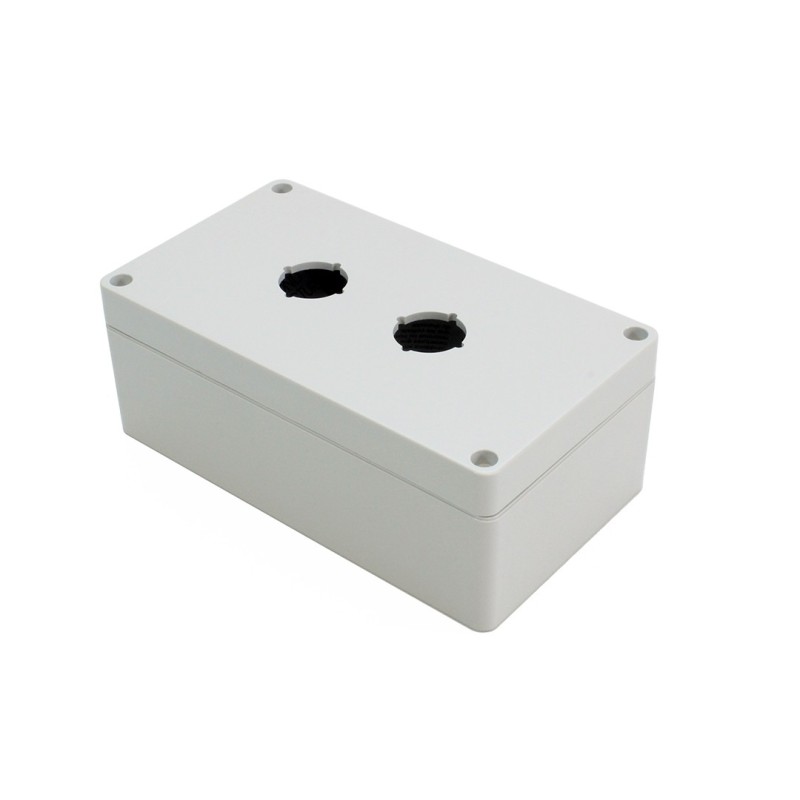

2 Hole PB Enclosure

1554PB2
  • 6.3" x 3.5" x 2.4"
  • Accepts 30.5mm push buttons
  • Preformed silicone gasket
  • Polycarbonate RAL‐7035 is UL 508A approved
  • Includes 4 cover screws
  • RoHS compliant
  • Made in Canada
$29.50
Quantity
6 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
  • Designed for mounting printed circuit boards or DIN rail mounted components
  • Polycarbonate material carries a UL flammability rating of UL94 5V
  • Suitable for outdoor use
  • Lid and mounting holes are located outside of the gasket seal
  • Lid is secured with self captivating M4 stainless steel machine screws threaded into integral stainless steel bushings
  • Gasket is a preformed, high temperature U.L. listed silicone rubber
  • Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water
  • Internal DIN rail mounting tabs
  • Vertical P.C. card guides are molded in all but the smallest size

RoHS Logo

Product Details
1554PB2
6 Items

Specific References

UPC
62398084335
EAN13
39121326
