100VA 240/480V X 120V 1PH

Reference 631-1301-300

Brand Jefferson Electric

Model 631-1301-300 Replaces 631-1301-000
Primary Voltages: 220/230/240V x 440/460/480V
Secondary Voltages: 110/115/120V
Secondary Fuse Clips Standard
Primary Fuse Block Available Part Number 631-0000-301
Primary Fuse Cover Available Part Number 631-0000-302

$60.00

Quantity

In stock: 7 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

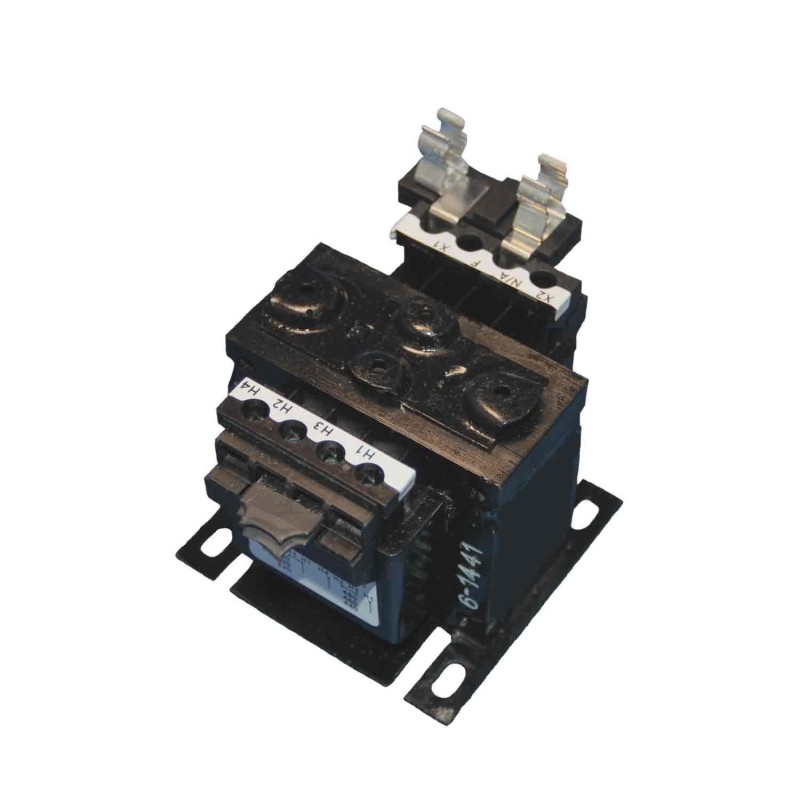

Open Coil Control Transformer 100VA 240/480V X 120V 1PH | 631-1301-300

Insulation Class 105
Temperature Rise 55°c
Ambient Temperature 40°c
Host Spot Allowance 10°c
Cores Made From High Grade Silicon Steel
Copper Coils

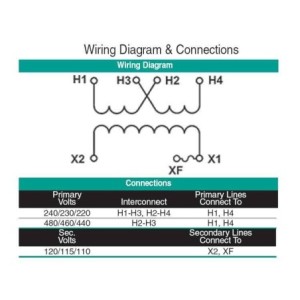

Permanently Affixed Wiring Diagram
UL and cUL Listed

Product Details

Reference 631-1301-300

In stock 7 Items

Specific References

UPC: 16130
