Miniature Female Panel Jack 'K' Thermocouple | MPJ-K-F
  • Miniature Female Panel Jack 'K' Thermocouple | MPJ-K-F
  • Miniature Female Panel Jack 'K' Thermocouple | MPJ-K-F
  • Jack Panel Clip | MPJ-K-F

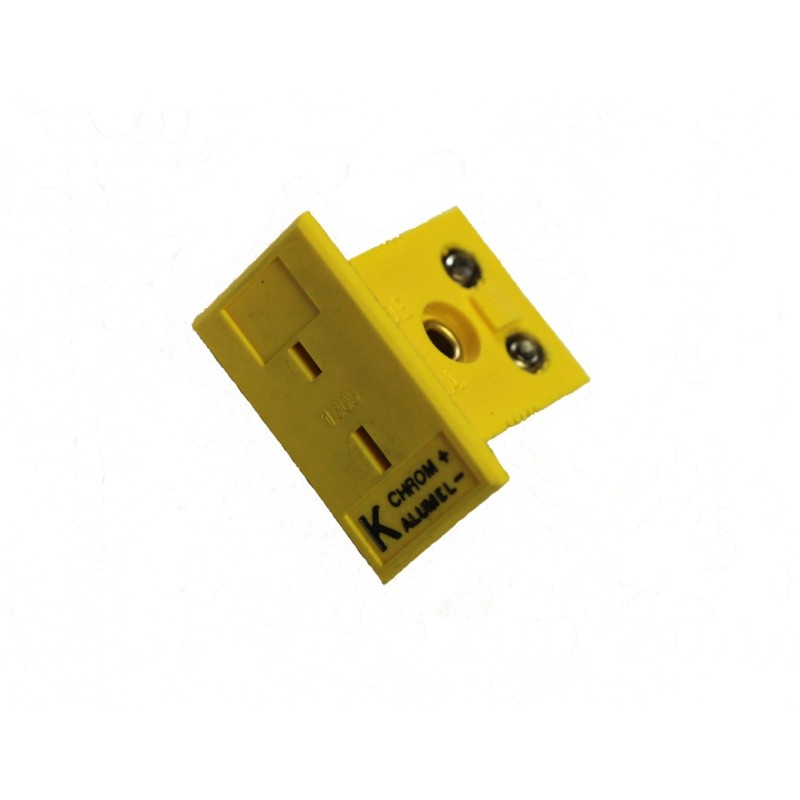

Miniature Female Panel Jack 'K' Thermocouple

MPJ-K-F
  • Omega Model MPJ-K-F Minature Female Panel Jack
  • ASTM Color Coding Assures Easy Identification
  • Accepts Stranded or Solid T/C Wire Upto 20/Gauge
  • Glass-filled Nylon Body Provides High Impact Strength
  • Accepts Flat Pins
  • Rated to -29° ~ 220°C (-20°~425°F)
  • Made In The USA
$4.00
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The MPJ Miniature Panel Jack requires less than half of the panel area required by the Standard Size connectors. A simple push-on clip retains the connector in a rectangular cutout.  Angled Terminal screws allow wiring to be done after panel assembly.

Required Cut-Out Dimensions 8.1mm x 16.7mm (0.32" x 0.66")

Center to Center 14.3 mm (0.56") Horizontally

Minimum Row to Row Centers 23.8mm (0.94")
