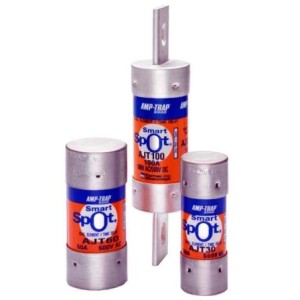

AJT1-6/10 Shawmut 1-6/10-A 600Vac 500Vdc Time-Delay Fuse

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200174335

Specifically Designed For Protection of Photovoltaic Systems Protects Battery Charge Controllers, Inverters, In-Line PV Cells 10K Amp Inturrupt Rating At 1000V-dc Low Fault Current Interrupting Capability Temperature Cycle Withstand Capability Can Be Used With Ultrasafe Fuse Holders UPC 78200142987

Primarily Used For Semiconductor Protection 13/32"OD x 1-1/2"L  (10mm x 38mm) Rated 700Vac 500Vdc Inturrupting Rating 160Ka@690Vac  I²T Clearing Rating 140A²Seconds @690Vac I²T Clearing Rating 94A²Seconds @480Vac I²T Clearing Rating 56A²Seconds @240Vac I²T Clearing Rating 45A²Seconds @120Vac

Designed For Solid State Motor Starters (Soft Starters) Low I2T For Protections Of Diodes, SCR's, GTO's, And Solid State Relays Excellent Cycling Ability For Frequent On / Off Devices Interrupt Amp Rating 200K@600Vac 100K@500Vdc Can Be Used In Combination To Provide Branch Circuit Protection Per National Electric Code And Semiconductor Devices At The...
