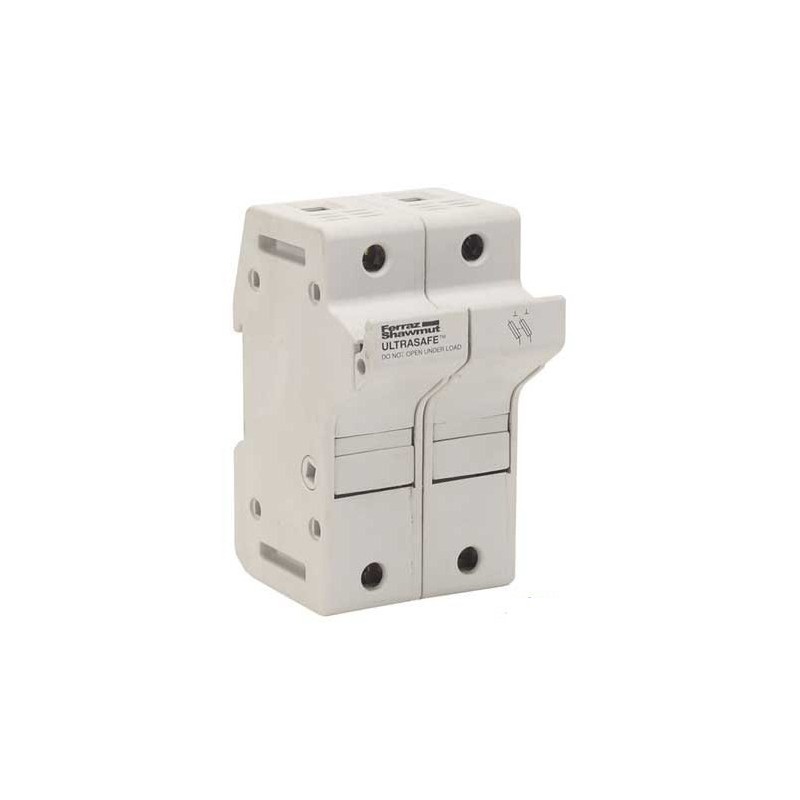

30A 2P 600V ac~dc Ultrasafe Class J Fuse Holder
  • 30A 2P 600V ac~dc Ultrasafe Class J Fuse Holder
  • 30A 2P 600V ac~dc Ultrasafe Class J Fuse Holder

30A 2P 600V ac~dc Ultrasafe Class J Fuse Holder

US3J2
Mersen
  • Ultrasafe IP20 Modular Fuse Holders For Class J Fuses
  • DIN Rail Mounting
  • For Fuse Ferrule 13/16"OD x 2-1/4"L (22mm X 58mm)
  • Short Circuit Rating 200Ka@600V ac~dc
  • Terminal Wire Range #14 ~ #2 Copper Solid/Stranded
  • Ultrasafe Is a Trade Mark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould Fuse Inc.
  • UPC 78200130772
$72.72
Quantity
6 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

FOR USE WITH THE FOLLOWING MERSEN FUSES FORMALLY KNOWN AS FERRAZ-SHAWMUT, AND GOULD FUSES:

  • Mersen Type AJT Fuse Specifications PDF Document  AJT Class J Time Delay Fuses
  • Mersen Type A4J Fuse Specifications PDF Document  A4J Class J Current Limiting Fuses
  • Mersen Type HSJ Fuse Specifications PDF Document  HSJ High Speed Semiconductor Fuses
Product Details
US3J2
6 Items

Specific References

UPC
78200130772
