HP6M5 Shawmut 5A 600Vdc Photovoltaic Fuse

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200174343

Designed For Solid State Motor Starters (Soft Starters) Low I2T For Protections Of Diodes, SCR's, GTO's, And Solid State Relays Excellent Cycling Ability For Frequent On / Off Devices Interrupt Amp Rating 200K@600Vac 100K@500Vdc Can Be Used In Combination To Provide Branch Circuit Protection Per National Electric Code And Semiconductor Devices At The...

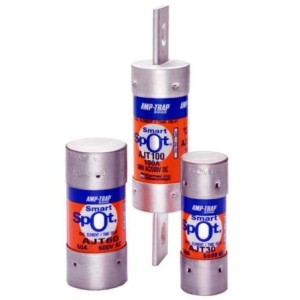

Amp-Trap Class J Time Delay Fuse SmartSpot Indicator Provides Visual For Blown Fuse Most Current-Limiting UL Class Fuse IEC Type 2 No Damage Protection For All Types Of Loads Interrupt Amp Rating 200K@600Vac 100K@500Vdc High Grade Silica Filler Ensures Fast Arc Quenching UPC 78200196268

Specifically Designed For Protection of Photovoltaic Systems Protects Battery Charge Controllers, Inverters, In-Line PV Cells 10K Amp Inturrupt Rating At 1000V-dc Low Fault Current Interrupting Capability Temperature Cycle Withstand Capability Can Be Used With Ultrasafe Fuse Holders UPC 78200142986
