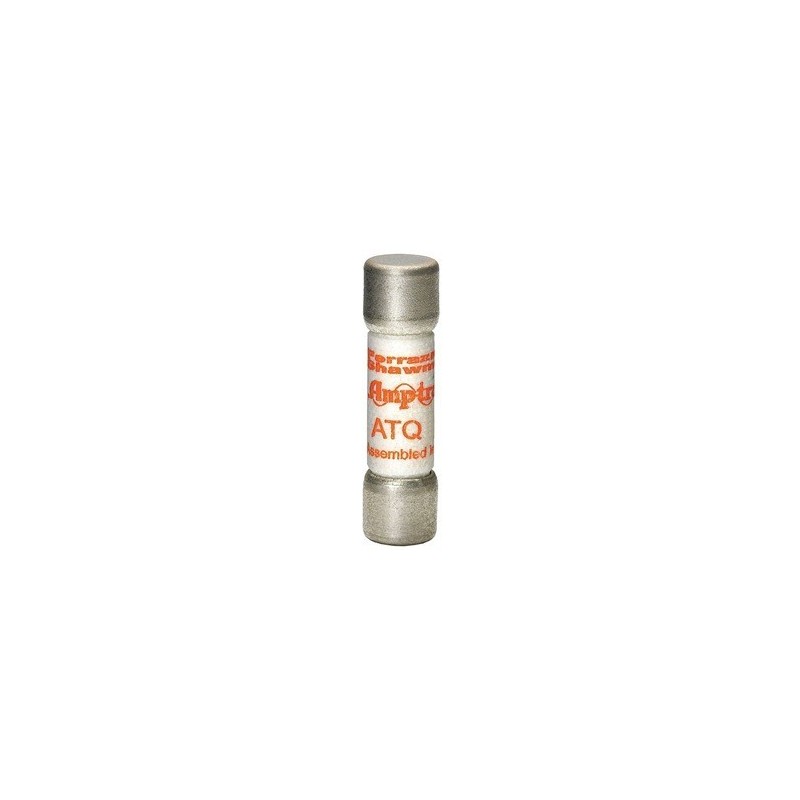

ATQ15/100 Shawmut Fuse 15/100-A 500Vac Time-Delay

Class CC IEC Type 2 No Damage Protection Fuse Rejection Design Prevents Substitution By Lesser Rated Fuses  Rated Inturrupting Capacity 200Ka@600Vac 100Ka@600Vdc Fast-Acting And Very Current-Limiting Can Be Used With Ultrasafe Type UCC Fuse Holders Ultrasafe Is A Trademark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould Fuses UPC 78200190384

Primarily Used For Control Circuits, Control Transformers, And Small Motors 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interrupting Rating Fast Acting On Short Circuits Moderate Time-Delay On Inrush Currents Also Available Up To 15Amps Can Be Used With UltraSafe Fuse Holders UPC 78200190136

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200190431

Primarily Used For Control Circuits, Control Transformers, And Small Motors 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interrupting Rating Fast Acting On Short Circuits Moderate Time-Delay On Inrush Currents Also Available Up To 15Amps Can Be Used With UltraSafe Fuse Holders UPC 78200190133
