ATM1/4 SHAWMUT FUSE 1/4-A 600Vac-dc Fast Acting

Class CC Rated 300Vdc and 600Vac Rated Inturrupting Capacity 200Ka@600Vac 100Ka@300Vdc Rejection Design Prevents Substitution By Lesser Rated Fuses Can Be Used With Ultrasafe Type UCC Fuse Holders Ideally Suited For High Inrush Currents of Control Transformers, and Solenoids Ultrasafe Is A Trademark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould Fuses...

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200174333

Primarily Used For Semiconductor Protection 13/32"OD x 1-1/2"L  (10mm x 38mm) Rated 700Vac 500Vdc Inturrupting Rating 160Ka@690Vac  I²T Clearing Rating 425A²Seconds @690Vac I²T Clearing Rating 285A²Seconds @480Vac I²T Clearing Rating 170A²Seconds @240Vac I²T Clearing Rating 136A²Seconds @120Vac

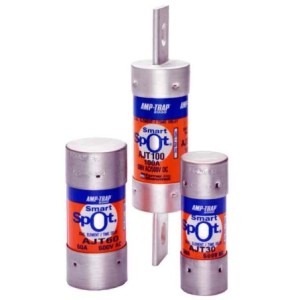

Amp-Trap Class J Time Delay Fuse SmartSpot Indicator Provides Visual For Blown Fuse Most Current-Limiting UL Class Fuse IEC Type 2 No Damage Protection For All Types Of Loads Interrupt Amp Rating 200K@600Vac 100K@500Vdc High Grade Silica Filler Ensures Fast Arc Quenching Can Be Used With IP20 Rated Ultrasafe Fuse Holders UPC 78200196277
