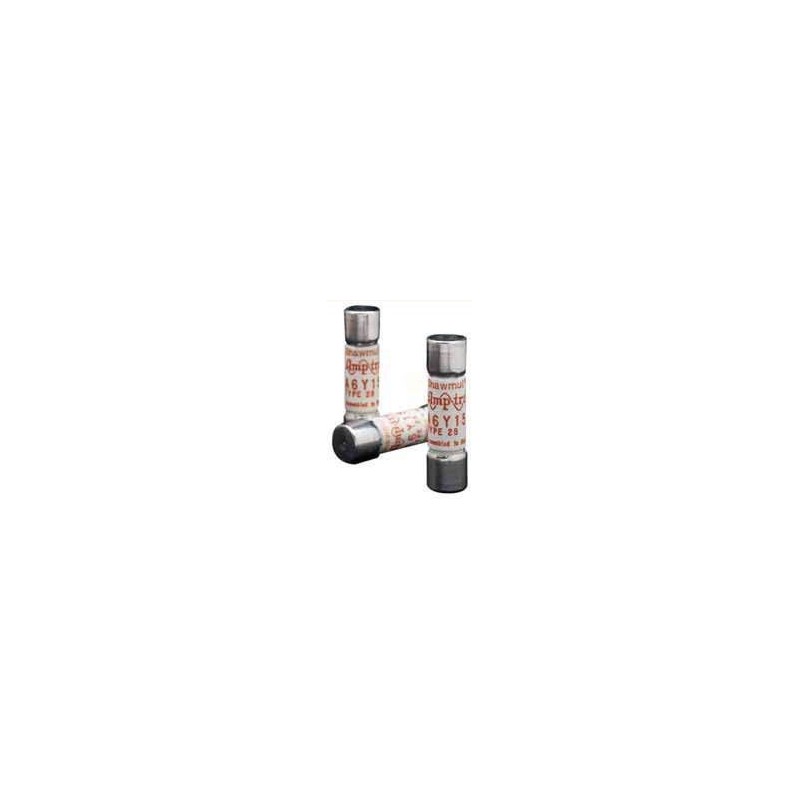

A6Y5-2B Shawmut Fuse 5A 500Vac Time Delay

Class J Fast Acting And Current Limiting For Low Peak Let-Thru Current Rated Inturrpting Capacity 200Ka@600Vac 100Ka@300Vdc Unique Physical Dimensions Provides Protection From Substitution Can Be Used With IP20 Rated Ultrasafe Fuse Holders  Ultrasafe Is A Trademark of Mersen Fuses a/k/a Ferraz-Shawmut and Gould Fuses Inc. UPC 78200196006

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200190460

Class J Fast Acting And Current Limiting For Low Peak Let-Thru Current Rated Inturrpting Capacity 200Ka@600Vac 100Ka@300Vdc Unique Physical Dimensions Provides Protection From Substitution Can Be Used With IP20 Rated Ultrasafe Fuse Holders  Ultrasafe Is A Trademark of Mersen Fuses a/k/a Ferraz-Shawmut and Gould Fuses Inc. UPC 78200196026

Primarily Used For Semiconductor Protection 13/32"OD x 1-1/2"L  (10mm x 38mm) 600V ac/dc Rated Inturrupting Rating 200Ka@600Vac  100Ka@600Vdc I²T Clearing Rating 100k@600Vac= 330A²Seconds I²T Clearing Rating 100K@600Vdc = 200A²Seconds Same as Bussman FWC-20A10F
