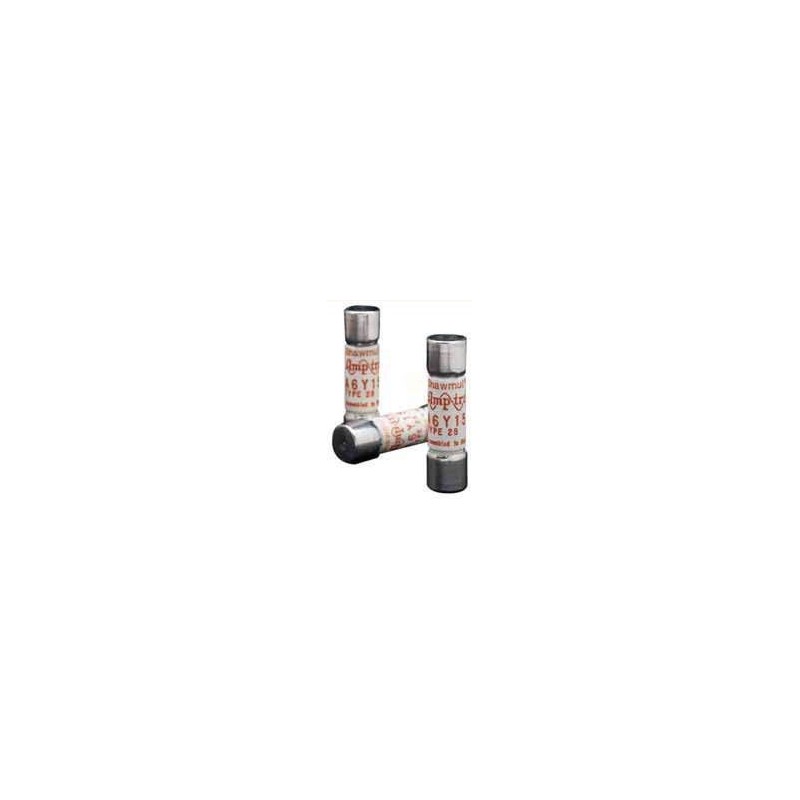

A6Y4-2B Shawmut Fuse 4A 500Vac Time Delay

Class CC Rated 300Vdc and 600Vac Rated Inturrupting Capacity 200Ka@600Vac 100Ka@300Vdc Rejection Design Prevents Substitution By Lesser Rated Fuses Can Be Used With Ultrasafe Type UCC Fuse Holders Ideally Suited For High Inrush Currents of Control Transformers, and Solenoids Ultrasafe Is A Trademark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould Fuses...

Class CC Rated 300Vdc and 600Vac Rated Inturrupting Capacity 200Ka@600Vac 100Ka@300Vdc Rejection Design Prevents Substitution By Lesser Rated Fuses Can Be Used With Ultrasafe Type UCC Fuse Holders Ideally Suited For High Inrush Currents of Control Transformers, and Solenoids Ultrasafe Is A Trademark Of Mersen Fuses a/k/a Ferraz-Shawmut And Gould Fuses...

Primarily Used For Semiconductor Protection 13/32"OD x 1-1/2"L  (10mm x 38mm) Rated 700Vac 500Vdc Inturrupting Rating 160Ka@690Vac  I²T Clearing Rating 140A²Seconds @690Vac I²T Clearing Rating 94A²Seconds @480Vac I²T Clearing Rating 56A²Seconds @240Vac I²T Clearing Rating 45A²Seconds @120Vac

Time-Delay 12-Seconds at 200% Of Fuse Ampere Rating Ideal For Circuits With High Inrush Currents Supplemental Protection For Solenoids, Motors, And Transformer Circuits 13/32"OD x 1-1/2"L (10mm x 38mm) 10K Amp Interupting Rating Available in Amerages Up To 30A Can Be Used With UltraSafe Fuse Holders UPC 78200174313
