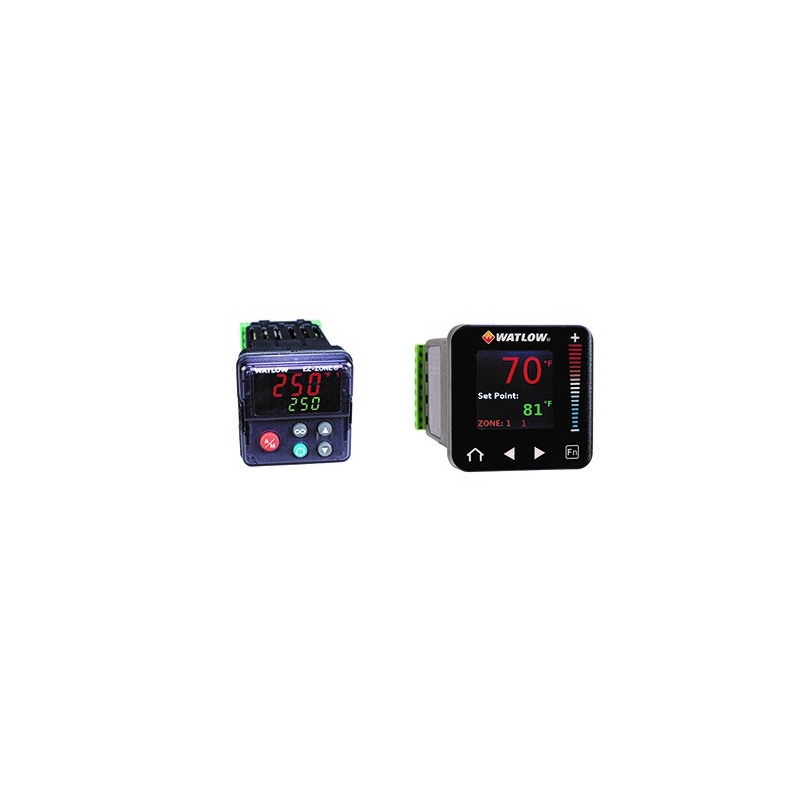

PM6C1FJ-AAAABAA 1/6-DIN 2-Outputs
  • PM6C1FJ-AAAABAA 1/6-DIN 2-Outputs
  • PM6C1FJ-AAAABAA Front View
  • PM6C1FJ-AAAABAA Rear View
  • PM6C1FJ-AAAABAA Enhanced Menu Options
  • PM6C1FJ-AAAABAA Dimensions

PM6C1FJ-AAAABAA 1/6-DIN 2-Outputs

PM6C1FJ-AAAABAA
  • One Universal Input
  • Output #1 (F) - Universal Process
  • Output #2 (J) - Mechanical Relay 5A, Form A
  • Operating Voltage 100 ~ 240VAC
  • Auto-Tune PID Controller
  • PM Express Set-Up Menu
  • For Basic Heating/Cooling Applications
$449.00
Tax included
Quantity
In Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

WATLOW EZ-ZONE® PM6C1FJ-AAAABAA

  • This unit can control a compressor, motor, pressure, valve, humidity, as well as thermal processes.
  • The serial communications when used with the free WATLOW software, saves time of controller setup.
  • Also available in 20 ~ 28VAC or 12 ~ 40VDC Model PM6C3FJ-AAAABAA

Updated EZ-ZONE® Features

  • These units now come with Bluetooth® (B), replacing the serial communications (A) at no additional charge - PM6C1FJ-BAAABAA
  • Watlow's new version of the EZ-ZONE® EXPRESS is the LEGACY® model - PM6C1FJ-BAAAHWP
  • Available with a more extensive menu EZ-ZONE® PLUS® thermal process - PM6C1FJ-BAAAPWP

Universal Input

  • This can be a thermocouple grounded or ungrounded
  • It can be an RTD 2-wire or 3-wire
  • It can be 0-20mA or 0-50mV

Universal Process Output

The universal process is range selectable between 0-10VDC or 4-20mA.

The differences between (Form A) & (Form C)

Form A - single pole, single throw (SPST).
Form C - double pole, double throw (DPDT).

Direct replacement for Watlow Series 93 & Series 96

This unit replaces obsolete models: 93AA-1FD0-00AA, 93AA-1FD0-00AB, 93AA-1FD0-00AC, 93AA-1FD0-00AD, 93AA-1FD0-00GG, 93AA-1FD0-00GR, 93AA-1FD0-00RG, 93AA-1FD0-00RR, 93AB-1FD0-00AA, 93AB-1FD0-00AB, 93AB-1FD0-00AC, 93AB-1FD0-00AD, 93AB-1FD0-00GG, 93AB-1FD0-00GR, 93AB-1FD0-00RG, 93AB-1FD0-00RR, 93BA-1FD0-00AA, 93BA-1FD0-00AB, 93BA-1FD0-00AC, 93BA-1FD0-00AD, 93BA-1FD0-00GG, 93BA-1FD0-00GR, 93BA-1FD0-00RG, 93BA-1FD0-00RR, 93BB-1FD0-00AA, 93BB-1FD0-00AB, 93BB-1FD0-00AC, 93BB-1FD0-00AD, 93BB-1FD0-00GG, 93BB-1FD0-00GR, 93BB-1FD0-00RG, 93BB-1FD0-00RR, 965A-1FD0-0000, 965A-1FD0-00AM, 965A-2FD0-0000, 965A-2FD0-00AM, 965A-3FD0-0000, 965A-3FD0-00AM, 965A-3FD0-00BH, 965A-3FD0-00BR, 965A-3FD0-00EL, 965A-3FD0-00GG, 965A-3FD0-00GR, 965A-3FD0-00RG, 965A-3FD0-0200, 965A-3FD0-02AM, 965A-3FD0-02BH, 965A-3FD0-02BR, 965A-3FD0-02EL, 965A-3FD0-02GG, 965A-3FD0-02GR, 965A-3FD0-02RG, 965A-3FD0-0300, 965A-3FD0-03AM, 965A-3FD0-03BH, 965A-3FD0-03BR, 965A-3FD0-03EL, 965A-3FD0-03GG, 965A-3FD0-03GR, 965A-3FD0-03RG, 965A-3FD0-0400, 965A-3FD0-04AM, 965A-3FD0-04BH, 965A-3FD0-04BR, 965A-3FD0-04EL, 965A-3FD0-04GG, 965A-3FD0-04GR, 965A-3FD0-04RG

Review the above tabs for Data Sheets, FAQ's & Attachments for more specifics and operator's manual.

Product Details
PM6C1FJ-AAAABAA
0
3 Items

Data sheet

PROGRAM FEATURES
Advanced Auto-Tune PID Control Algorithm
AGENCY APPROVALS
UL Listed, CSA, CE, RoHS, W.E.E.E. FM
WARRANTY
Three Years
OTHER FEATURES
IP2X Increases Safety For Installers And Operators
    What's the difference between PM PLUS® and PM LEGACY®?

    The PM LEGACY® is ideal for basic heating and cooling applications.

    The LEGACY® includes one universal input and an option for up to two outputs and is available in 1/16 DIN and 1/32 DIN panel mount packages. It can be ordered as a PID process controller or as a dedicated over and under-temperature limit controller.

    The PM PLUS® is is backwards compatible with LEGACY®, but offers much more. For example, PM PLUS® offers Bluetooth® connectivity with the EZ-LINK™ mobile app for remote access capability with full descriptions of parameters and error codes

    The PM PLUS® improves the user experience by reducing the complexity at the front of the control while eliminating the dependency of cables when configuring the product. Like the original EZ-ZONE® PM, the PM PLUS® can be ordered as a PID controller, or an integrated controller with multiple functions combined into one.

    What are PM LEGACY® temperature controllers?

    Watlow’s new PM LEGACY® temperature controllers utilize the EZ-ZONE® PM platform by optimizing performance through simple control and menu functionality without complex features. They are ideally suited for basic applications and usage levels. PM LEGACY® controllers can be ordered as PID process controllers or as dedicated over and under-temperature limit controllers.
