PM6C3FJ-AAAABAA 1/6-DIN 2-Outputs

PM6C3FJ-AAAABAA
  • One Universal Input
  • Output #1 (F) - Universal process
  • Output #2 (J) - Mechanical relay 5A, Form A
  • Operating Voltage 20 to 28VAC or 12 to 40VDC
  • Auto-Tune PID Controller
  • PM Express Set-Up Menu
  • For Basic Heating/Cooling Applications
$498.98
Tax included
Quantity
In Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

WATLOW EZ-ZONE® PM6C3FJ-AAAABAA

  • This unit can control a compressor, motor, pressure, valve, humidity, as well as thermal processes.
  • The serial communications when used with the free WATLOW software, saves time of controller setup.
  • Also available in 100 ~ 240VAC Model PM6C1FJ-AAAABAA

Updated EZ-ZONE® Features

  • These units now come with Bluetooth® (B), replacing the serial communications (A) at no additional charge - PM6C3FJ-BAAABAA

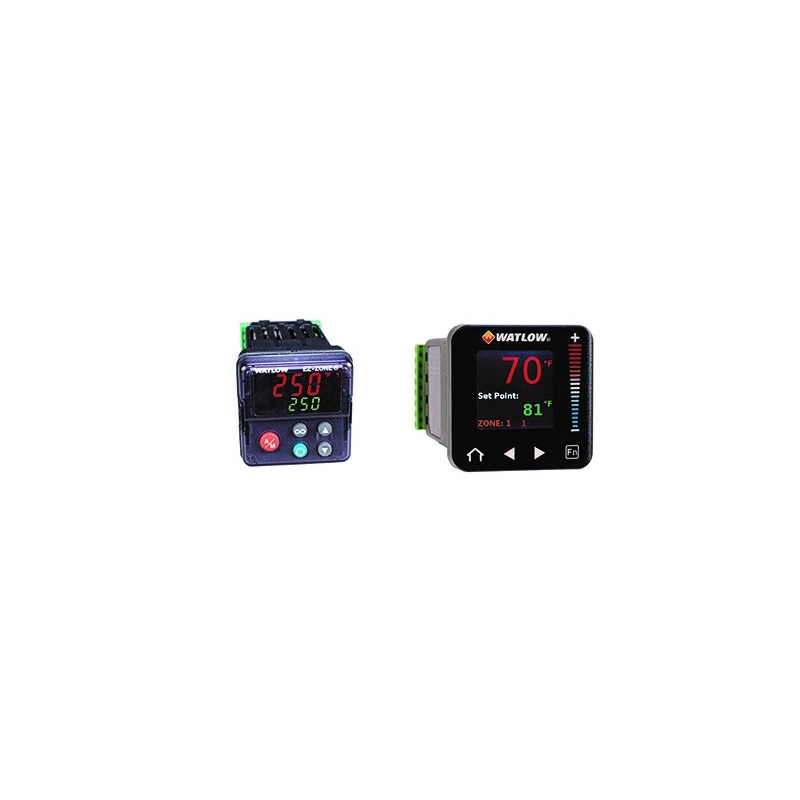

  • Watlow's new version of the EZ-ZONE® EXPRESS is the LEGACY® model - PM6C3FJ-BAAAHWP
  • Available with a more extensive menu EZ-ZONE® PLUS® thermal process - PM6C3FJ-BAAAPWP

Universal Input

  • This can be a thermocouple grounded or ungrounded
  • It can be an RTD 2-wire or 3-wire
  • It can be 0-20mA or 0-50mV

Universal Process Output

The universal process is range selectable between 0-10VDC or 4-20mA.

The differences between (Form A) & (Form C)

Form A - single pole, single throw (SPST).
Form C - double pole, double throw (DPDT).

Direct replacement for Watlow Series 93 & Series 96

This unit replaces obsolete models: 93AA-1FD1-00AA, 93AA-1FD1-00AB, 93AA-1FD1-00AC, 93AA-1FD1-00AD, 93AA-1FD1-00GG, 93AA-1FD1-00GR, 93AA-1FD1-00RG, 93AA-1FD1-00RR, 93AB-1FD1-00AA, 93AB-1FD1-00AB, 93AB-1FD1-00AC, 93AB-1FD1-00AD, 93AB-1FD1-00GG, 93AB-1FD1-00GR, 93AB-1FD1-00RG, 93AB-1FD1-00RR, 93BA-1FD1-00AA, 93BA-1FD1-00AB, 93BA-1FD1-00AC, 93BA-1FD1-00AD, 93BA-1FD1-00GG, 93BA-1FD1-00GR, 93BA-1FD1-00RG, 93BA-1FD1-00RR, 93BB-1FD1-00AA, 93BB-1FD1-00AB, 93BB-1FD1-00AC, 93BB-1FD1-00AD, 93BB-1FD1-00GG, 93BB-1FD1-00GR, 93BB-1FD1-00RG, 93BB-1FD1-00RR, 965A-1FD1-0000, 965A-1FD1-00AM, 965A-2FD1-0000, 965A-2FD1-00AM, 965A-3FD1-0000, 965A-3FD1-00AM, 965A-3FD1-00BH, 965A-3FD1-00BR, 965A-3FD1-00EL, 965A-3FD1-00GG, 965A-3FD1-00GR, 965A-3FD1-00RG, 965A-3FD1-0200, 965A-3FD1-02AM, 965A-3FD1-02BH, 965A-3FD1-02BR, 965A-3FD1-02EL, 965A-3FD1-02GG, 965A-3FD1-02GR, 965A-3FD1-02RG, 965A-3FD1-0300, 965A-3FD1-03AM, 965A-3FD1-03BH, 965A-3FD1-03BR, 965A-3FD1-03EL, 965A-3FD1-03GG, 965A-3FD1-03GR, 965A-3FD1-03RG, 965A-3FD1-0400, 965A-3FD1-04AM, 965A-3FD1-04BH, 965A-3FD1-04BR, 965A-3FD1-04EL, 965A-3FD1-04GG, 965A-3FD1-04GR, 965A-3FD1-04RG

Review The Data Sheet Tab Or FAQ's For More Specifics Or Check Out The Operator's Manual From The Attachments Tab.

Product Details
PM6C3FJ-AAAABAA
0
4 Items

Data sheet

PROGRAM FEATURES
Advanced Auto-Tune PID Control Algorithm
AGENCY APPROVALS
UL Listed, CSA, CE, RoHS, W.E.E.E. FM
WARRANTY
Three Years
OTHER FEATURES
IP2X Increases Safety For Installers And Operators
    What are PM LEGACY® temperature controllers?

    Watlow’s new PM LEGACY® temperature controllers utilize the EZ-ZONE® PM platform by optimizing performance through simple control and menu functionality without complex features. They are ideally suited for basic applications and usage levels. PM LEGACY® controllers can be ordered as PID process controllers or as dedicated over and under-temperature limit controllers.
