PM6C1EA-AAEAAAA 1/16-DIN 2-Output

PM6C1EA-AAEAAAA
  • One Universal Input
  • Output #1 (E) - Mechanical relay 5A, Form C
  • Output #3 (E) - Mechanical relay 5A, Form C
  • Operating Voltage 100 to 240VAC
  • Auto-Tune PID Controller With Extensive Menu Options
$509.89
Tax included
Quantity
In Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

WATLOW EZ-ZONE® PM6C1EA-AAEAAAA

  • This unit can control a compressor, motor, pressure, valve, humidity, as well as thermal processes.
  • The serial communications when used with the free WATLOW software, saves time of controller setup.
  • Replacement for Watlow 965A-3DD0-00RR
  • Also available in 20 to 28VAC or 12 to 40VDC Model PM6C3EA-AAEAAAA

Updated EZ-ZONE® Features

  • These units now come with Bluetooth® (B), replacing the serial communications (A) at no additional charge - PM6C1EA-BAEAAAA

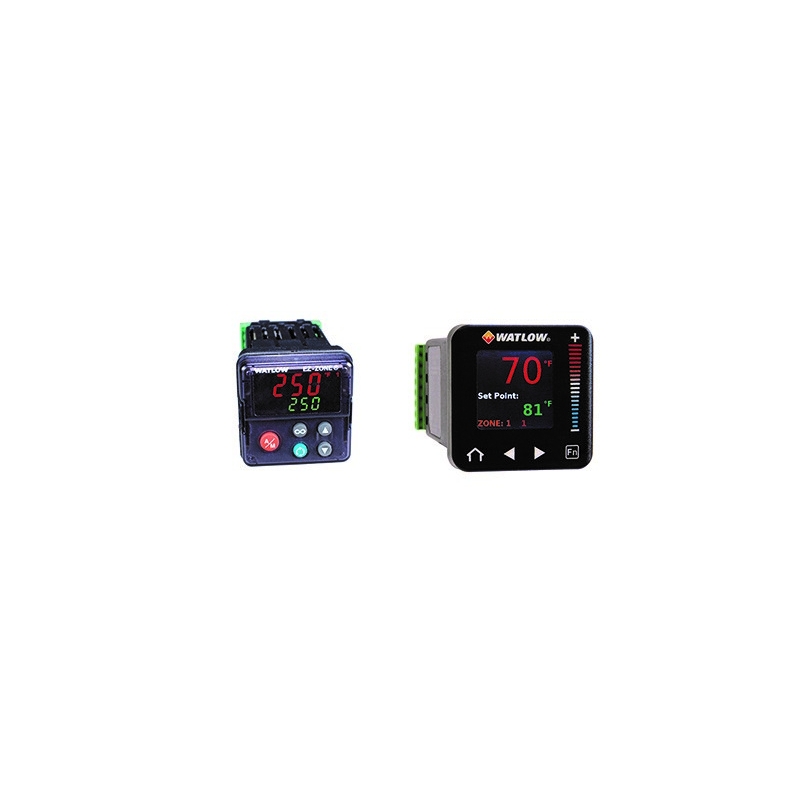

  • Watlow's new version of the EZ-ZONE® is the PLUS® model - PM6C1EA-BAEAPWP
  • Available with a basic simplified menu for thermal processes - PM6C1EA-BAEAHWP

Universal Input

  • This can be a thermocouple grounded or ungrounded
  • It can be an RTD 2-wire or 3-wire
  • It can be 0-20mA or 0-50mV

Universal Process Output

The universal process is range selectable between 0-10VDC or 4-20mA.

The differences between (Form A) & (Form C)

Form A - single pole, single throw (SPST).
Form C - double pole, double throw (DPDT).

Review The Data Sheet Tab Or FAQ's For More Specifics Or Check Out The Operator's Manual From The Attachments Tab.

Product Details
PM6C1EA-AAEAAAA
0
4 Items

Data sheet

PROGRAM FEATURES
Advanced Auto-Tune PID Control Algorithm
AGENCY APPROVALS
UL Listed, CSA, CE, RoHS, W.E.E.E. FM
WARRANTY
Three Years
OTHER FEATURES
IP2X Increases Safety For Installers And Operators
    What's the difference between PM PLUS® and PM LEGACY®?

    The PM LEGACY® is ideal for basic heating and cooling applications.

    The LEGACY® includes one universal input and an option for up to two outputs and is available in 1/16 DIN and 1/32 DIN panel mount packages. It can be ordered as a PID process controller or as a dedicated over and under-temperature limit controller.

    The PM PLUS® is is backwards compatible with LEGACY®, but offers much more. For example, PM PLUS® offers Bluetooth® connectivity with the EZ-LINK™ mobile app for remote access capability with full descriptions of parameters and error codes

    The PM PLUS® improves the user experience by reducing the complexity at the front of the control while eliminating the dependency of cables when configuring the product. Like the original EZ-ZONE® PM, the PM PLUS® can be ordered as a PID controller, or an integrated controller with multiple functions combined into one.

    What are PM LEGACY® temperature controllers?

    Watlow’s new PM LEGACY® temperature controllers utilize the EZ-ZONE® PM platform by optimizing performance through simple control and menu functionality without complex features. They are ideally suited for basic applications and usage levels. PM LEGACY® controllers can be ordered as PID process controllers or as dedicated over and under-temperature limit controllers.
