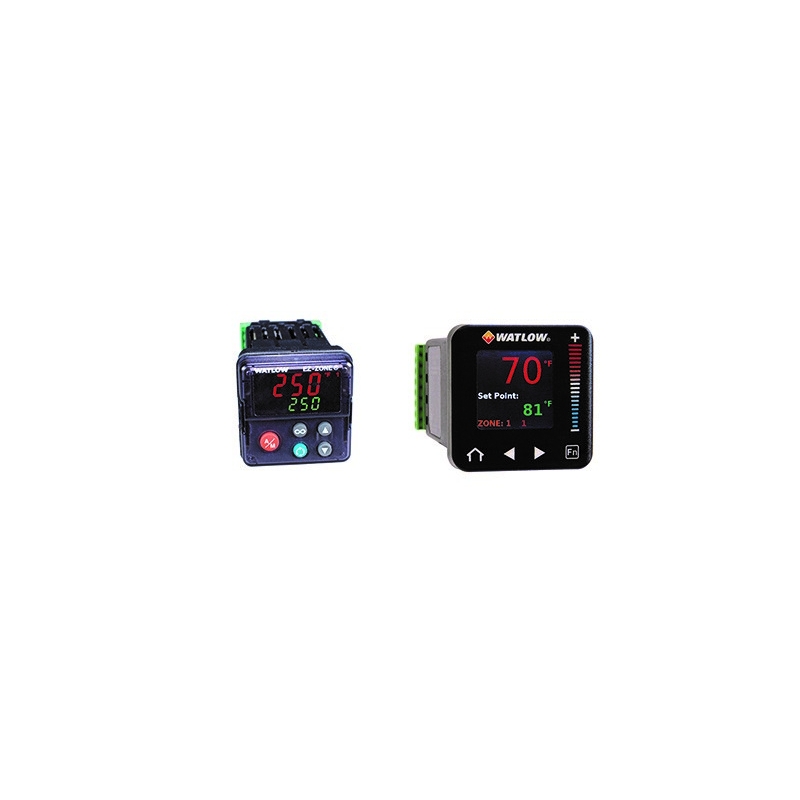

PM6L1EJ-AAAABAA 1/16-DIN 2-Outputs
- Output #1 5-Amp Single Pole Double Throw Mechanical Relay
- Output #2 One 5-Amp Single Pole Single Throw Mechanical Relay
- One Universal Sensor Input
- 100~240V-AC Line Voltage
- Micro Processor Based
- High/Low Temperature Limit Controller
- Basic Heat/Cool Menu Options
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description
- The universal input uses either a grounded or ungrounded thermocouple sensor, or either a two or three wire RTD sensor, or a scalable process either 4~20mA or 0~10vDC.
- Dual Red Over Green LED Displays
- Standard Bus Communications allows a Serial Converter To Connect To Any Computer With A USB Port.
- Can Be Configured Via Computer With FREE SOFTWARE From Watlow
- Made In The USA
Product Details
PM6L1EJ-AAAABAA
0
4 Items
Data sheet
- AGENCY APPROVALS
- UL Listed, CSA, CE, RoHS, W.E.E.E. FM
- WARRANTY
- Three Years
- OTHER FEATURES
- Removable Cage Clamp Wiring Connectors
- Output #1 5-Amp Single Pole Double Throw Mechanical Relay
- Output #2 One 5-Amp Single Pole Single Throw Mechanical Relay
- One Universal Sensor Input
- 100~240V-AC Line Voltage
- Micro Processor Based
- High/Low Temperature Limit Controller
- Basic Heat/Cool Menu Options
