PM6C1AK-AAAABAA 1/16-DIN 1-Output

PM6C1AK-AAAABAA
  • One Universal Input
  • Output #2 (K) - SSR Form A, 0.5A
  • Operating Voltage 100 ~ 240VAC
  • Auto-Tune PID Controller With Express Set Up Menu
  • For Basic Heating/Cooling Applications
$396.97
Tax included
Quantity
In Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

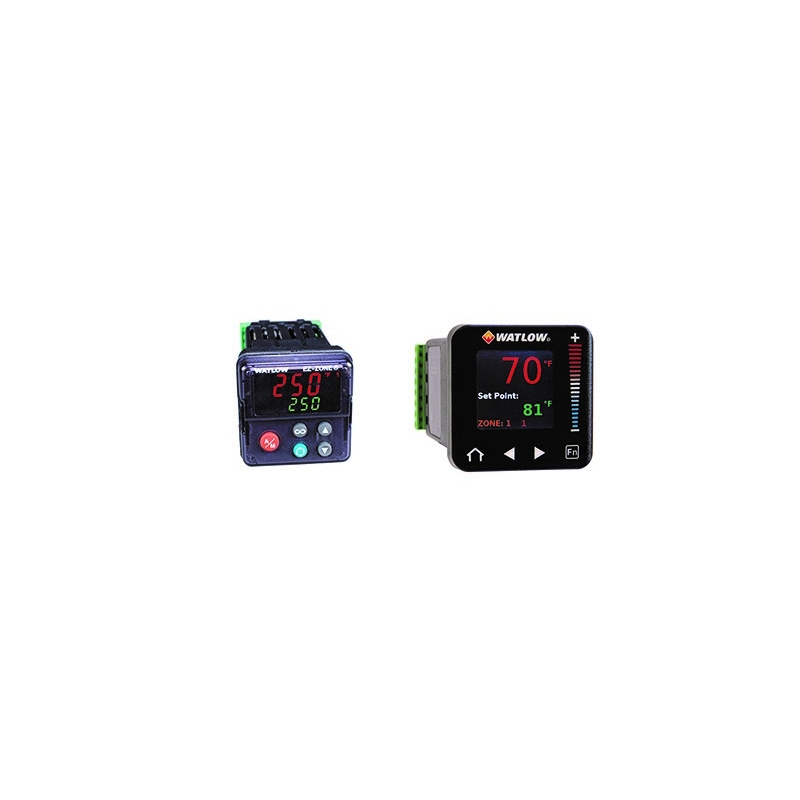

WATLOW EZ-ZONE® PM6C1AK-AAAABAA

  • This unit can control a compressor, motor, pressure, valve, humidity, as well as thermal processes.
  • The serial communications when used with the free WATLOW software, saves time of controller setup.
  • Direct replacement for Watlow 96A0-KAAA-00RR & 96A0-KAAA-00RG

Updated EZ-ZONE® Features

  • These units now come with Bluetooth® (B), replacing the serial communications (A) at no additional charge - PM6C1AK-BAAABAA
  • Watlow's new version of the EZ-ZONE® EXPRESS is the LEGACY® model - PM6C1AK-BAAAHWP
  • Available with a more extensive menu EZ-ZONE® PLUS® thermal process - PM6C1AK-BAAAPWP

Universal Input

  • This can be a thermocouple grounded or ungrounded
  • It can be an RTD 2-wire or 3-wire
  • It can be 0-20mA or 0-50mV

Universal Process Output

The universal process is range selectable between 0-10VDC or 4-20mA.

The differences between (Form A) & (Form C)

Form A - single pole, single throw (SPST).
Form C - double pole, double throw (DPDT).

Direct replacement for Watlow Series 93 & Series 96

This unit replaces obsolete models: 93AA-1KA0-00AA, 93AA-1KA0-00AB, 93AA-1KA0-00AC, 93AA-1KA0-00AD, 93AA-1KA0-00GG, 93AA-1KA0-00GR, 93AA-1KA0-00RG, 93AA-1KA0-00RR, 93AB-1KA0-00AA, 93AB-1KA0-00AB, 93AB-1KA0-00AC, 93AB-1KA0-00AD, 93AB-1KA0-00GG, 93AB-1KA0-00GR, 93AB-1KA0-00RG, 93AB-1KA0-00RR, 93BA-1KA0-00AA, 93BA-1KA0-00AB, 93BA-1KA0-00AC, 93BA-1KA0-00AD, 93BA-1KA0-00GG, 93BA-1KA0-00GR, 93BA-1KA0-00RG, 93BA-1KA0-00RR, 93BB-1KA0-00AA, 93BB-1KA0-00AB, 93BB-1KA0-00AC, 93BB-1KA0-00AD, 93BB-1KA0-00GG, 93BB-1KA0-00GR, 93BB-1KA0-00RG, 93BB-1KA0-00RR, 965A-3KA0-0000, 965A-3KA0-00AM, 965A-3KA0-00BH, 965A-3KA0-00BR, 965A-3KA0-00EL, 965A-3KA0-00GG, 965A-3KA0-00GR, 965A-3KA0-00RG, 965A-3KA0-0200, 965A-3KA0-02AM, 965A-3KA0-02BH, 965A-3KA0-02BR, 965A-3KA0-02EL, 965A-3KA0-02GG, 965A-3KA0-02GR, 965A-3KA0-02RG, 965A-3KA0-0300, 965A-3KA0-03AM, 965A-3KA0-03BH, 965A-3KA0-03BR, 965A-3KA0-03EL, 965A-3KA0-03GG, 965A-3KA0-03GR, 965A-3KA0-03RG, 965A-3KA0-0400, 965A-3KA0-04AM, 965A-3KA0-04BH, 965A-3KA0-04BR, 965A-3KA0-04EL, 965A-3KA0-04GG, 965A-3KA0-04GR, 965A-3KA0-04RG

Review the above tabs for Data Sheets, FAQ's & Attachments for more specifics and operator's manual.

Product Details
PM6C1AK-AAAABAA
0
4 Items

Data sheet

PROGRAM FEATURES
Advanced Auto-Tune PID Control Algorithm
AGENCY APPROVALS
UL Listed, CSA, CE, RoHS, W.E.E.E. FM
WARRANTY
Three Years
OTHER FEATURES
IP2X Increases Safety For Installers And Operators
